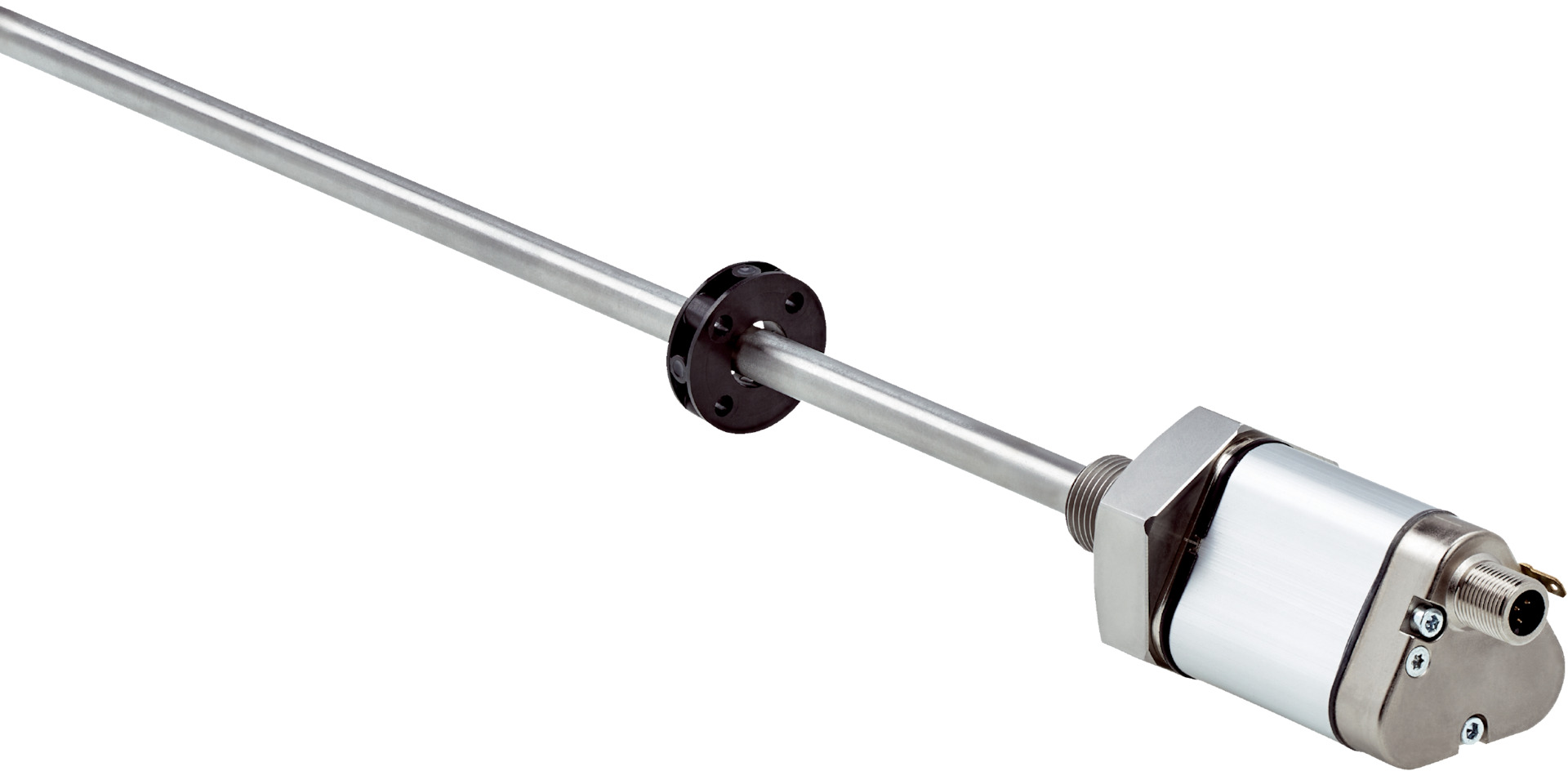

Analog Position Sensor DAXTAN-0405RA1J0J00 | 0 mm to 405 mm Range | IP65/IP67 Protection | by SICK
The Analog Position Sensor DAXTAN-0405RA1J0J00 is designed for precise position measurement in industrial automation, featuring a measuring range of 0 mm to 405 mm and high accuracy with linearity of ≤ 0.02% F.S. Built with a robust stainless steel and anodised aluminum housing, it operates in extreme temperatures from -40 °C to +85 °C, making it ideal for hydraulic cylinder sensing and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 405 mm
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ±20 µm
- Output signal: Analog current 20 mA to 4 mA
- Supply voltage: 24 V DC (±20%)
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Protection rating: IP65 / IP67
- Mechanical design: DAX Threaded, M18 x 1.5 thread
- Material: Stainless steel 1.4404 (AISI 316L) pressure pipe, anodised aluminum housing
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 15 g / 10–2000 Hz
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range of 0 mm to 405 mm with 30 mm null zone and 60 mm damping zone
- Robust mechanical design with stainless steel and anodised aluminum housing
- Analog current output signal from 20 mA to 4 mA
- Operating temperature range from -40 °C to +85 °C
- Protection rating IP65 / IP67 suitable for harsh environments
- High resistance to shocks (100 g) and vibration (15 g)
- Supply voltage 24 V DC with reverse polarity and over voltage protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and manufacturing process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

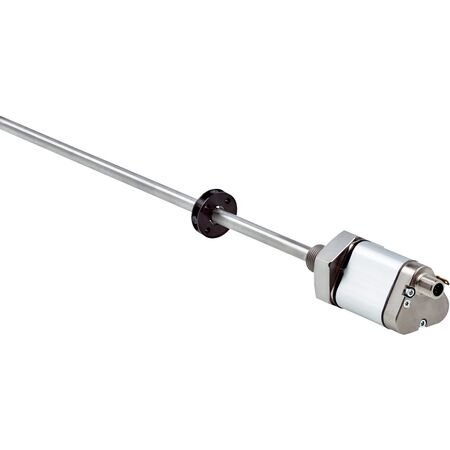

The SICK DAXTAN-0405RA1J0J00F00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
