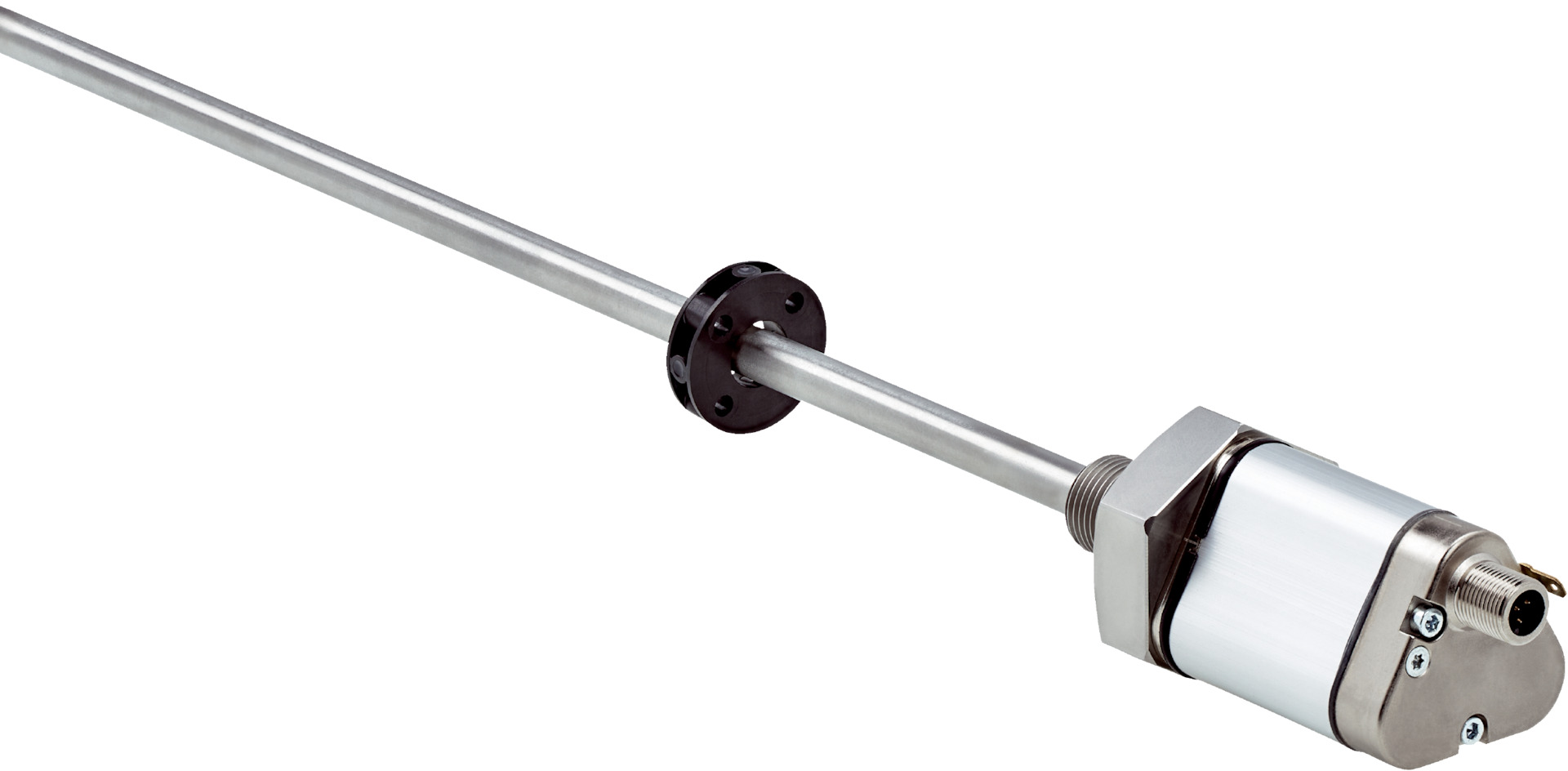

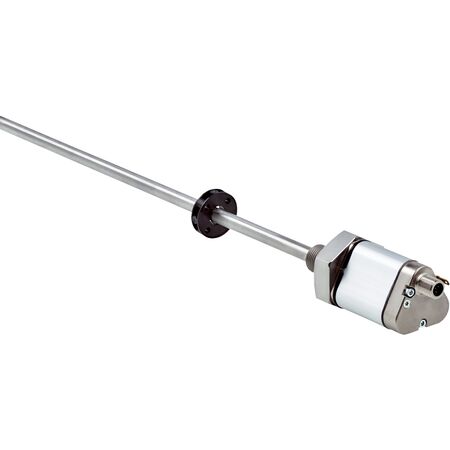

Analog Position Sensor DAXTAN-0610RA1B0J00D00 | 0 mm to 610 mm Range | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXTAN-0610RA1B0J00D00 offers high accuracy with a linearity of ≤ 0.02% F.S. and repeatability of ≤ ±20 µm, making it ideal for industrial automation and hydraulic cylinder position sensing. With a robust design featuring stainless steel and anodised aluminum, it operates in extreme temperatures from -40 °C to +85 °C and provides a reliable 4 mA to 20 mA analog output signal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 610 mm
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ± 20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection: Male connector, M12, 5-pin, A-coded
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Mechanical design: DAX Threaded, M18 x 1.5
- Materials: Stainless steel 1.4404 (AISI 316L), Aluminum anodised, zinc, stainless steel, brass
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 15 g / 10–2000 Hz
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range of 0 mm to 610 mm
- Robust mechanical design with stainless steel and anodised aluminum housing
- IP65 / IP67 rated for protection against dust and water
- Operating temperature range from -40 °C to +85 °C
- Analog current output signal 4 mA to 20 mA
- Fast measuring frequency less than 2 ms
- Reverse polarity and over voltage protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient analog output
- Supports precise control to optimize energy use in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXTAN-0610RA1B0J00D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
