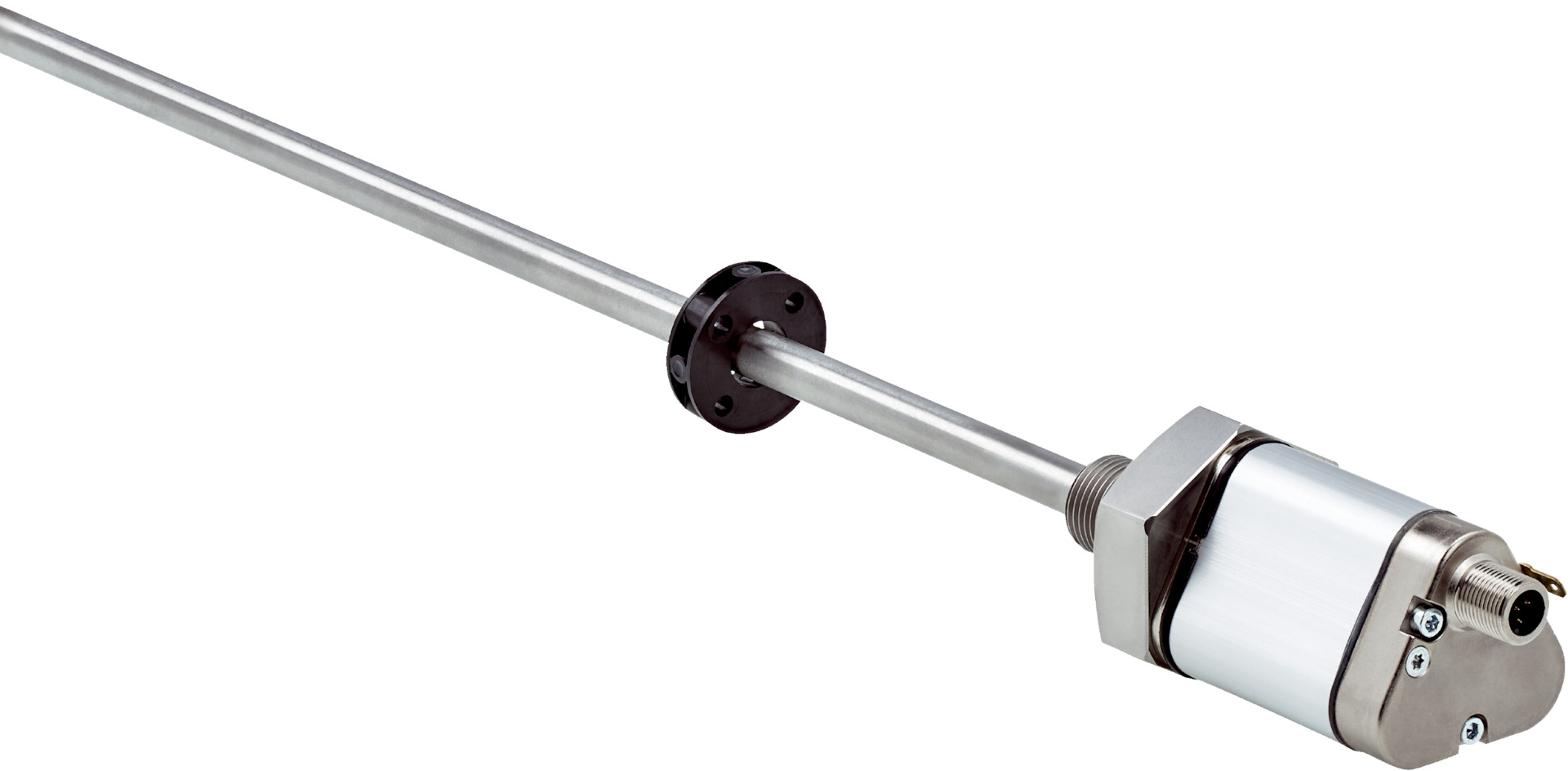

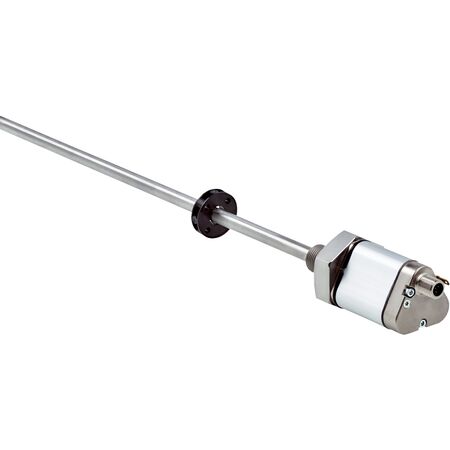

Analog Position Sensor DAXTAN-1600RA1F0J00 | 0 to 1600 mm Range | IP65/IP67 Rated | High Accuracy | by SICK
The Analog Position Sensor DAXTAN-1600RA1F0J00 is designed for precise position measurement in industrial automation, featuring a measuring range of 0 to 1600 mm and high accuracy with linearity of ≤ 0.02% F.S. Built with a robust stainless steel and anodised aluminum housing, it is IP65/IP67 rated, making it ideal for harsh environments. Perfect for hydraulic cylinder position feedback and machine tool positioning, this sensor ensures reliable performance in mobile machinery and heavy equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 1600 mm
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ≤ ±20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (±20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 15 g, 10 to 2000 Hz
- Material: Stainless steel 1.4404 (AISI 316L) pressure pipe, anodised aluminum housing
- Dimensions (H x L x W): 40mm x 200mm x 40mm
- Weight: 1.2 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range up to 1600 mm
- Robust mechanical design with stainless steel and anodised aluminum housing
- IP65 / IP67 rated for harsh environments
- Fast measuring frequency less than 2 ms
- Analog current output signal 4 mA to 20 mA
- Wide operating temperature range from -40 °C to +85 °C
- High resistance to shock (100 g) and vibration (15 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and heavy equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Supports precise control to optimize machine efficiency and reduce energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXTAN-1600RA1F0J00D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
