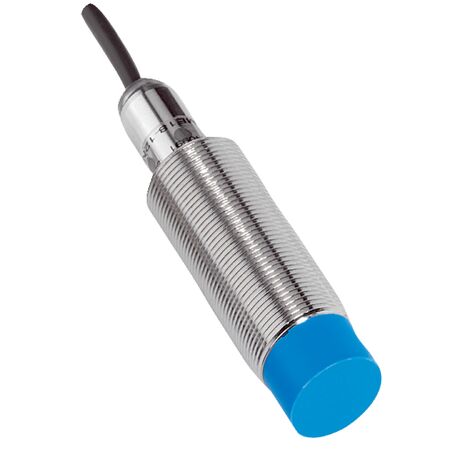

Analog Proximity Sensor M18 | Non-Flush Design | 0-10V & 4-20mA Output | IP67 Rated | by SICK
The Analog Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a non-flush installation type and an analog output range of 0-10V and 4-20mA. With a sensing range of 0 to 8 mm and high repeatability of ±0.1 mm accuracy, this sensor is perfect for harsh environments, ensuring reliable performance in manufacturing lines and non-contact measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Output voltage QA1: 0 V to 10 V depending on distance
- Output current QA2: 4 mA to 20 mA depending on distance
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25°C to +70°C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 67 mm
- Thread length: 42 mm
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Non-flush installation type
- Analog output with 0-10 V and 4-20 mA signals
- Sensing range of 0 to 8 mm
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25°C to +70°C
- Brass chromium-plated housing with plastic sensing face
- Includes two brass chromium-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact measurement in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMA18-08NE1ZW2S Analog Non-Flush Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
