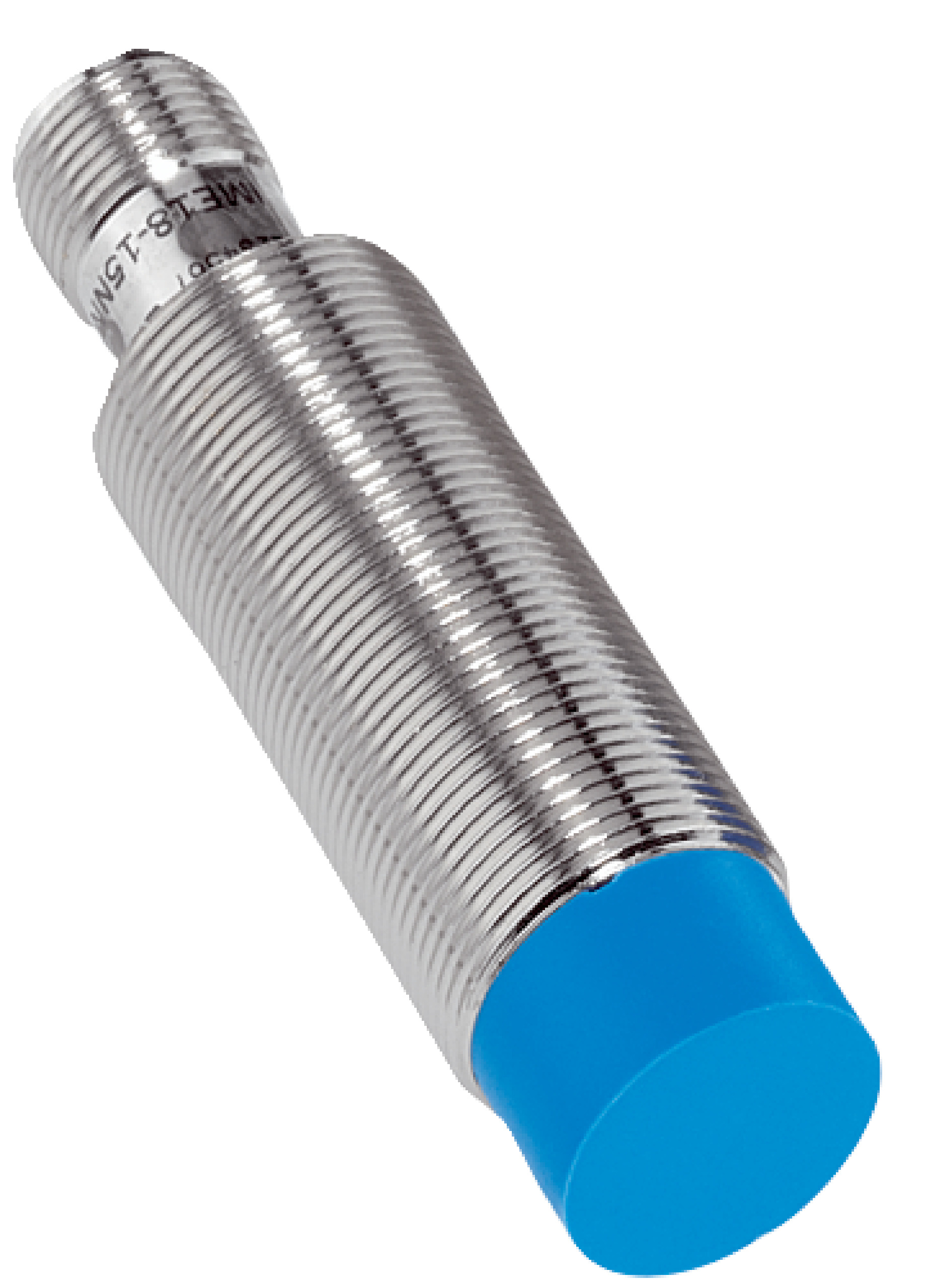

Analog Proximity Sensor M18 | Non-Flush Installation | 0-8mm Sensing Range | IP67 Rated | by SICK
The Analog Proximity Sensor M18 is designed for precise object detection with a sensing range of 0 to 8 mm and high repeatability of ±0.1 mm. Ideal for industrial automation and manufacturing processes, this sensor features a robust brass housing with an IP67 rating, ensuring durability in harsh environments. With an analog output range of 0 V to 10 V and 4 mA to 20 mA, it’s perfect for applications in robotics, material handling, and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1 thread
- Sensing range Sn: 0 mm to 8 mm
- Installation type: Non-flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog (0 V to 10 V, 4 mA to 20 mA)
- Repeatability: ±0.1 mm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance QA1: ≥ 2 kΩ
- Max load resistance QA2: 400 Ω at 15 V
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 69 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Non-flush installation type with metric M18 x 1 thread size
- Analog output with voltage range 0 V to 10 V and current 4 mA to 20 mA
- Sensing range up to 8 mm with high repeatability ±0.1 mm
- Robust brass chromium-plated housing with IP67 protection rating
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection and positioning
- Manufacturing process control
- Robotics and machinery safety systems
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces waste by extending product lifespan
- Low power consumption with efficient analog output
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

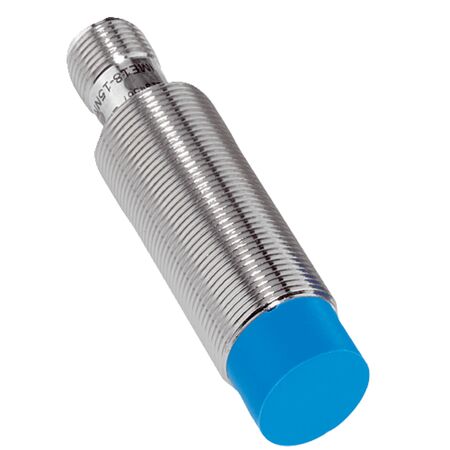

The SICK IMA18-08NE1ZC0S Analog Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
