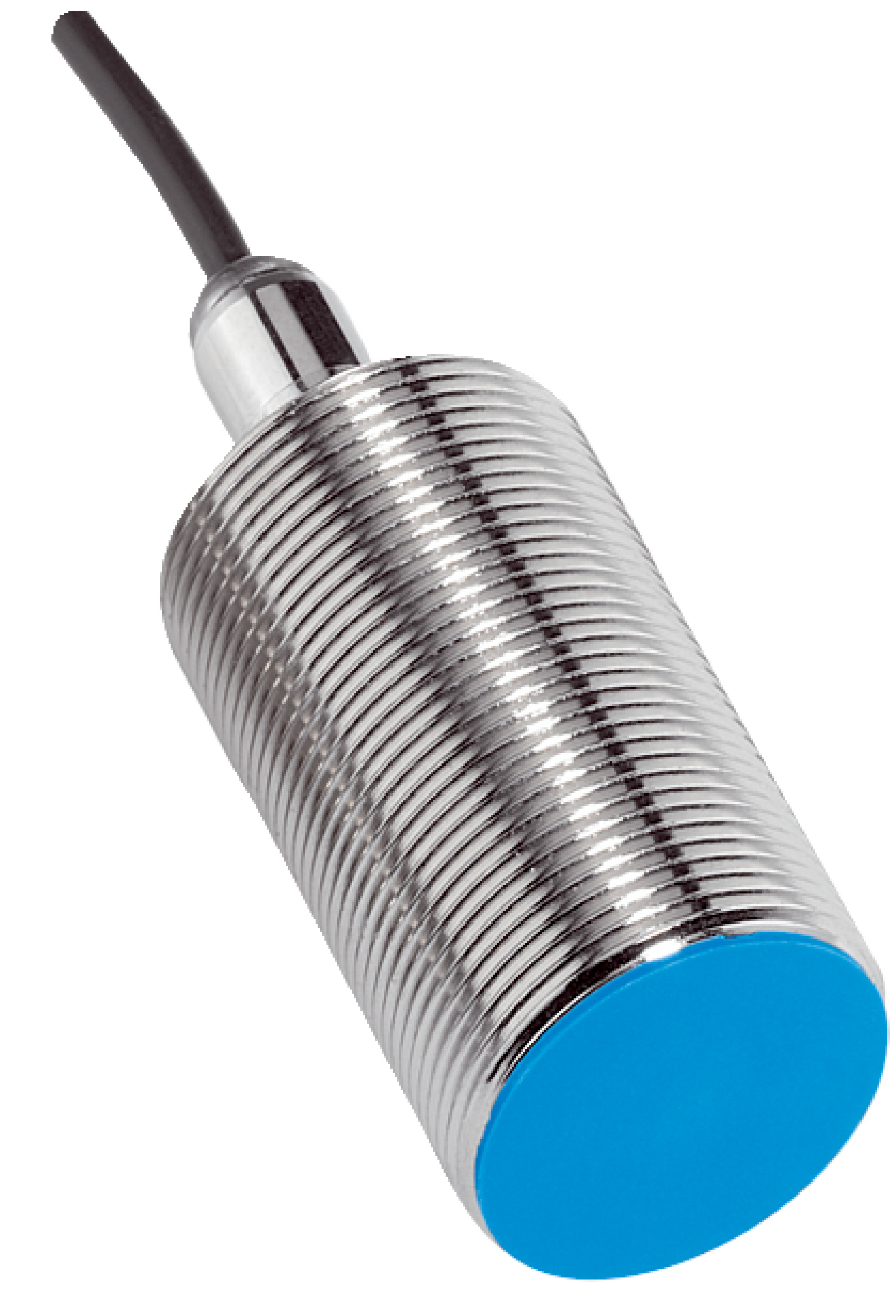

Analog Proximity Sensor M30 | 0-10mm Sensing Range | IP67 Rated | by SICK
The Analog Proximity Sensor M30 is designed for precise position sensing in industrial automation applications. With a sensing range of 0 to 10 mm and an analog output of 0-10 V, it ensures high repeatability and reliability. Built for durability with an IP67 rated enclosure, this sensor is perfect for machine safety, control systems, and material handling, making it an essential component for any automation setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Output voltage QA1: 0 V at 0 mm, 6.3 V at 5 mm, 10 V at 10 mm (±0.6 V)
- Output current QA2: 4 mA at 0 mm, 20 mA at 10 mm (±0.8 mA)
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25°C to +70°C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 70 mm
- Thread length: 54 mm
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric M30 x 1.5 threaded housing for flush installation
- Sensing range of 0 to 10 mm with high repeatability ±0.1 mm
- Analog output voltage 0-10 V and current 4-20 mA
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25°C to +70°C
- Brass chromium-plated housing with plastic sensing face
- Includes two nickel-plated brass mounting nuts
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and compliance with electrical safety standards.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Material handling and conveyor systems
- Robotics and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

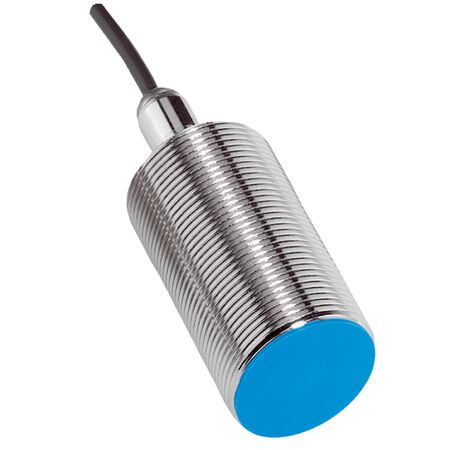

The SICK IMA30-10BE1ZW2S Analog Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise analog sensing.
