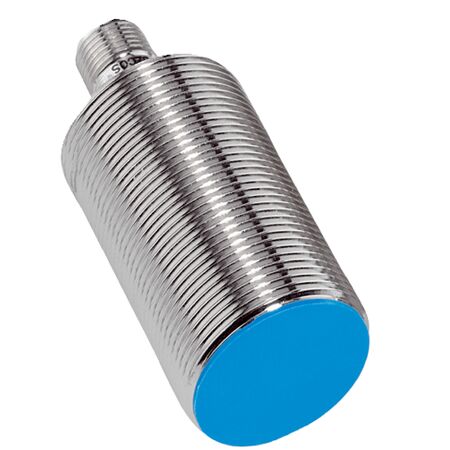

Analog Proximity Sensor M30 | Flush Mount | IP67 Rated | 0-10V & 4-20mA Output | by SICK
The Analog Proximity Sensor M30 is designed for precise position sensing in industrial automation. With a sensing range of up to 10 mm and high repeatability of ±0.1 mm, it ensures reliable performance. The IP67 rated enclosure provides excellent dust and water protection, making it ideal for machine safety and control systems in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric thread M30 x 1.5
- Sensing range Sn: 0 mm to 10 mm
- Installation type: Flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog voltage 0-10 V and current 4-20 mA
- Repeatability: ±0.1 mm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance QA1: ≥ 2 kΩ
- Max load resistance QA2: 400 Ω at 15 V
- Output voltage QA1 at 0 mm: 0 V ±0.6 V
- Output voltage QA1 at 5 mm: 6.3 V ±0.6 V
- Output voltage QA1 at 10 mm: 10 V ±0.6 V
- Output current QA2 at 0 mm: 4 mA ±0.8 mA
- Output current QA2 at 10 mm: 20 mA ±0.8 mA
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 71 mm
- Thread length: 54 mm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.2 kg
Key Features
- Flush installation with M30 x 1.5 metric thread housing
- Analog output with voltage range 0 V to 10 V and current 4 mA to 20 mA
- Sensing range up to 10 mm with high repeatability ±0.1 mm
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Material handling and conveyor systems
- Robotics and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMA30-10BE1ZC0S Analog Flush Mount Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
