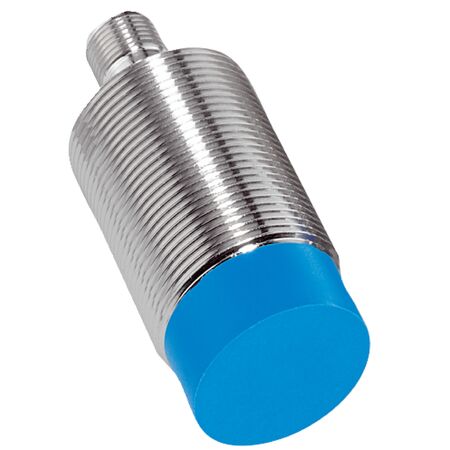

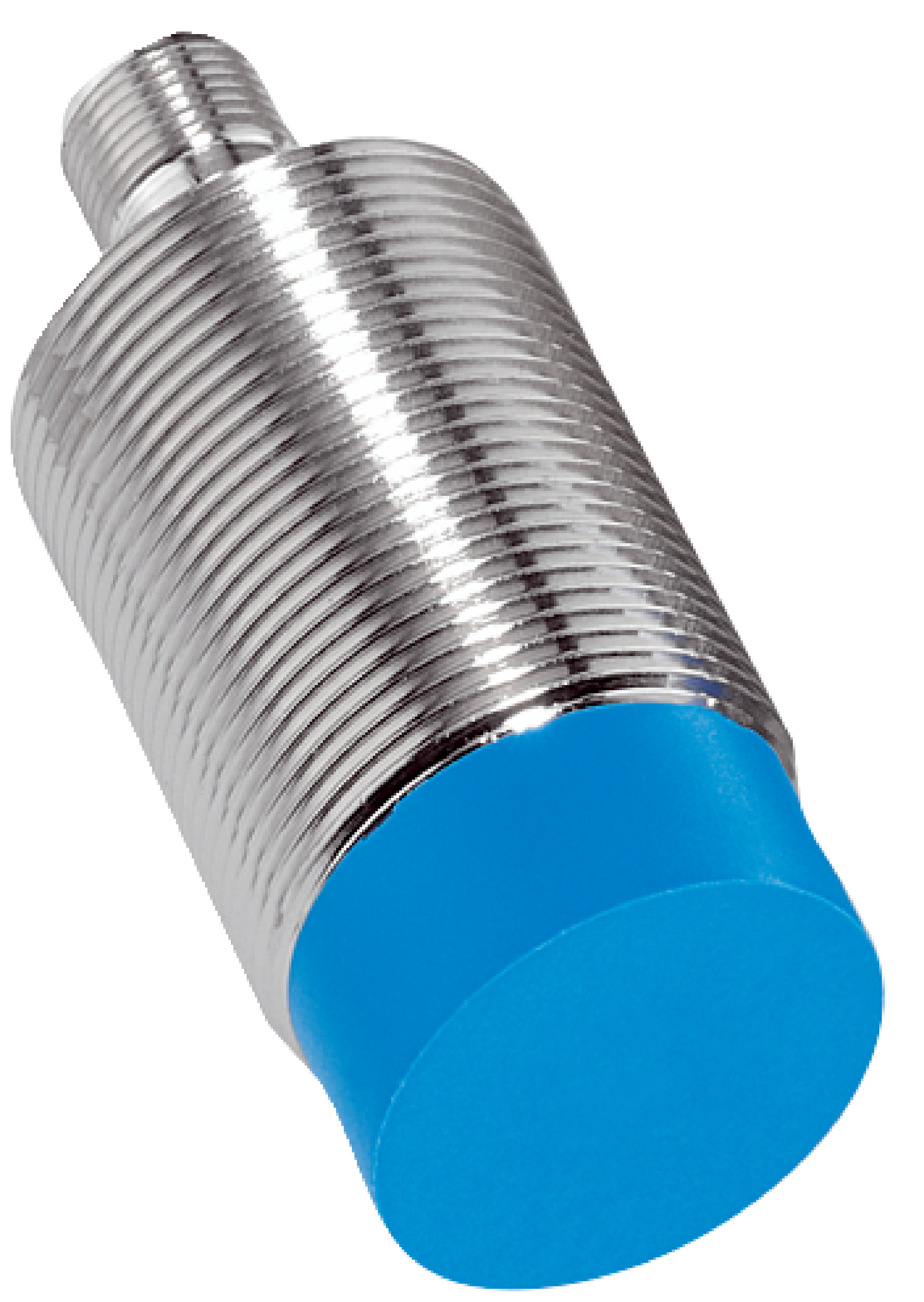

Analog Proximity Sensor M30 | Non-Flush Installation | 15mm Sensing Range | IP67 Rated | by SICK
The Analog Proximity Sensor M30 is designed for precise object detection in industrial automation, featuring a sensing range of up to 15mm and an IP67 rated enclosure for dust and water protection. With an analog output of 0 V to 10 V and 4 mA to 20 mA, this sensor is perfect for non-contact measurement in harsh environments, ensuring high repeatability and accuracy for manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Output voltage QA1: 0 V to 10 V depending on distance
- Output current QA2: 4 mA to 20 mA depending on distance
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 71 mm
- Thread length: 41 mm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Non-flush installation type
- Analog output with voltage 0 V to 10 V and current 4 mA to 20 mA
- Sensing range up to 15 mm
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact measurement in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMA30-15NE1ZC0S Analog Non-Flush Proximity Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
