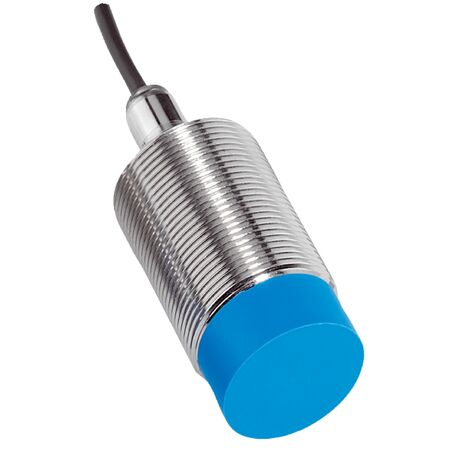

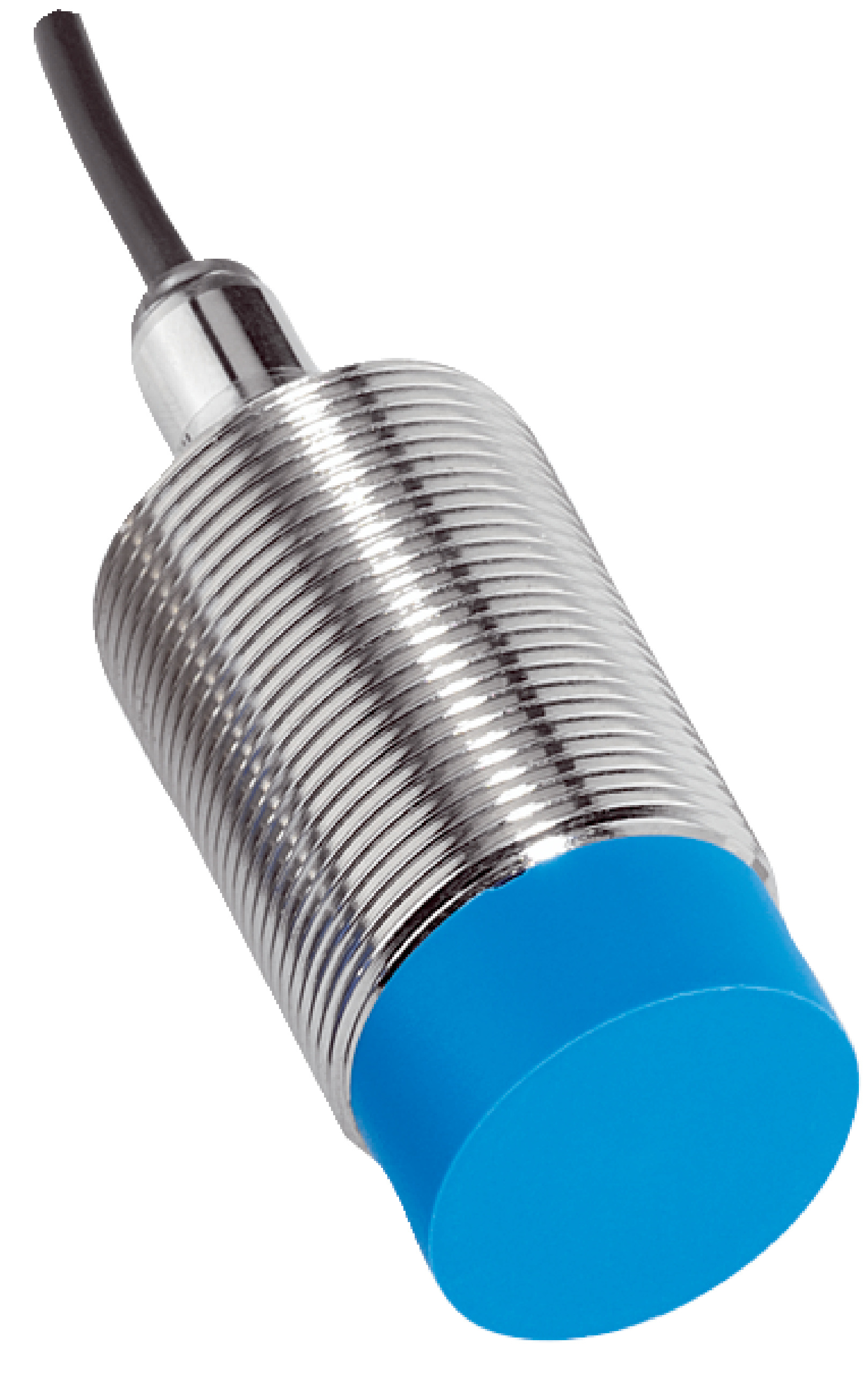

Analog Proximity Sensor M30 | Non-Flush Installation | IP67 Rated | 0-10 V & 4-20 mA Output | by SICK
The Analog Proximity Sensor M30 is designed for precise non-contact sensing in industrial automation, featuring a sensing range of up to 15 mm and an IP67 rated enclosure for dust and water protection. With analog output options of 0-10 V and 4-20 mA, this sensor ensures high repeatability and reliability, making it ideal for machine safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Sensing range Sn: 0 mm to 15 mm
- Installation type: Non-flush
- Connection type: Cable, 4-wire, 2 m
- Output function: Analog (0-10 V and 4-20 mA)
- Repeatability: ±0.1 mm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance QA1: ≥ 2 kΩ
- Max load resistance QA2: 400 Ω at 15 V
- Output voltage QA1: 0 V to 10 V depending on distance
- Output current QA2: 4 mA to 20 mA depending on distance
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25°C to +70°C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 70 mm
- Thread length: 41 mm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.3 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Non-flush installation type
- Analog output with 0-10 V and 4-20 mA signals
- Sensing range up to 15 mm
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25°C to +70°C
- Brass chromium-plated housing with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Non-contact object detection in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMA30-15NE1ZW2S Analog Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise non-contact sensing.
