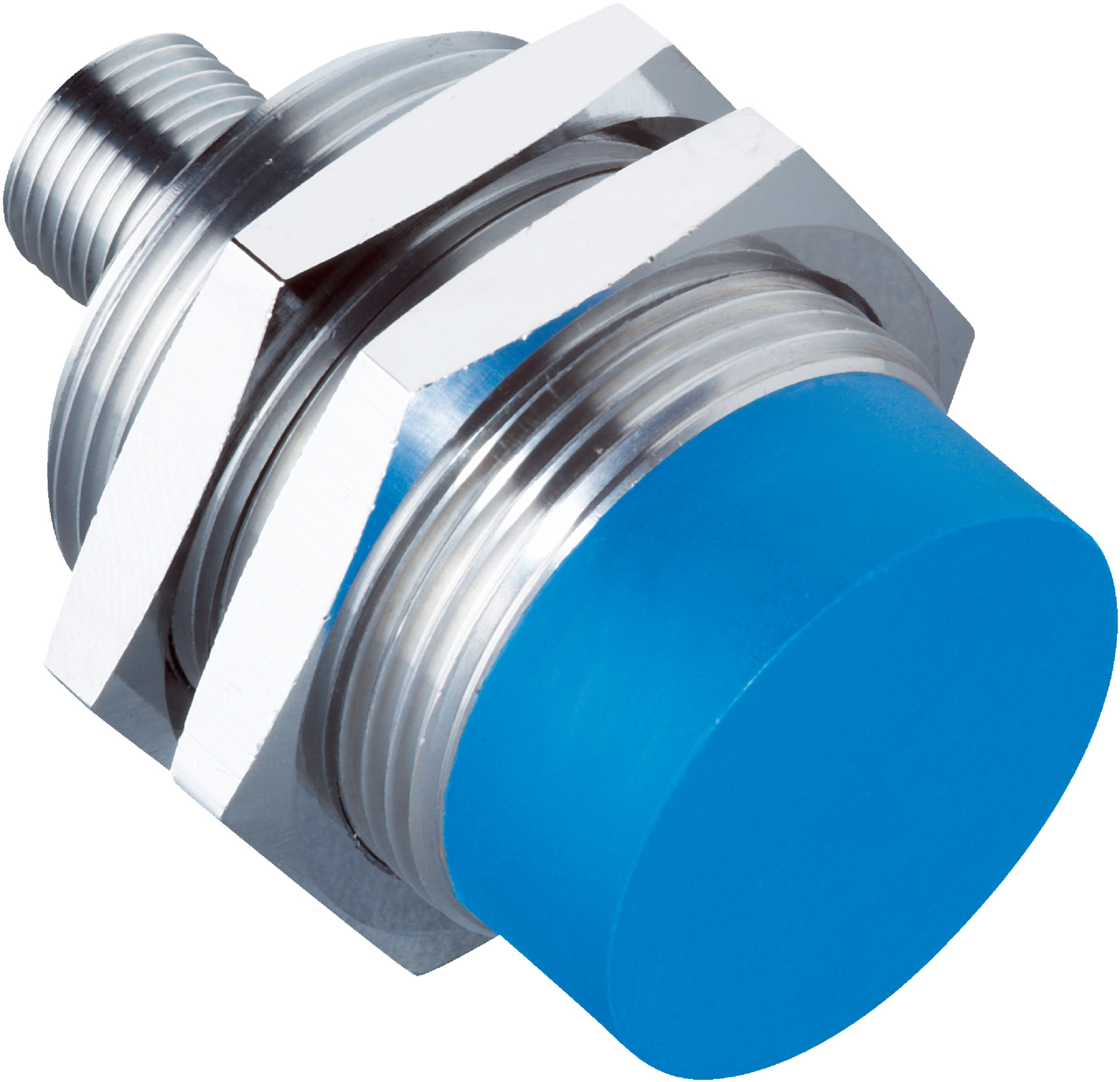

Analog Proximity Sensor M30 | Non-Flush Installation | IP67 Rated | ±0.1 mm Accuracy | by SICK
The Analog Proximity Sensor M30 is designed for precise object detection and positioning in industrial automation. With a sensing range of 0 mm to 40 mm and an analog output of 0 V to 10 V, it ensures high repeatability with ±0.1 mm accuracy. Ideal for manufacturing process control and robotics, this sensor features an IP67 rating for dust and water protection, making it perfect for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread size
- Sensing range Sn: 0 mm to 40 mm
- Installation type: Non-flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog 0 V to 10 V
- Repeatability (Taconstant): ± 0.1 mm
- Resolution: ≤ 10 µm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 50 ms
- Temperature drift (of Sr): ≤ 10%
- No load current: ≤ 12 mA
- Load current: ± 10 mA
- Max. load resistance: ≤ 400 Ω at 15 V, ≤ 1,000 Ω at 30 V
- Output voltage QA1 at 0 mm: 0 V/-0 +0.4 V, at 20 mm: +5.2 V ±0.4 V, at 40 mm: +10 V ±0.4 V
- Output current QA2 at 0 mm: 4 mA ±0.8 mA, at 40 mm: 20 mA ±0.8 mA
- Bandwidth: 100 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, PTB
- Housing length: 48.5 mm
- Thread length: 25 mm
- Dimensions (H x L x W): 48.5mm x 48.5mm x 30mm
- Weight: 0.15 kg
Key Features
- Non-flush installation type with metric housing
- Analog output with triple sensing range
- High repeatability with ±0.1 mm accuracy
- IP67 rated for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Supply voltage range from 15 V DC to 30 V DC
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and positioning
- Manufacturing process control
- Robotics and machinery sensing
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

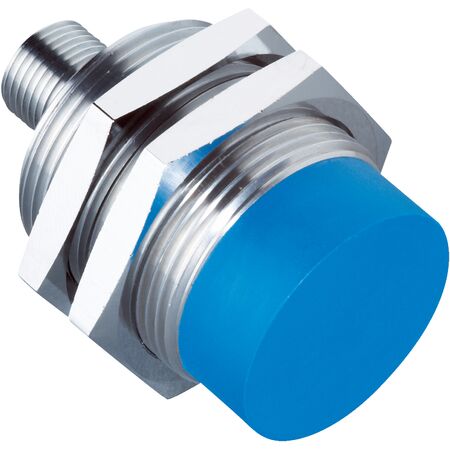

The SICK IMA30-40NE1ZC0K Analog Non-Flush Proximity Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
