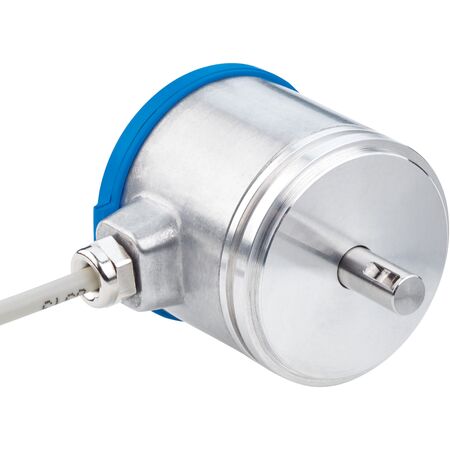

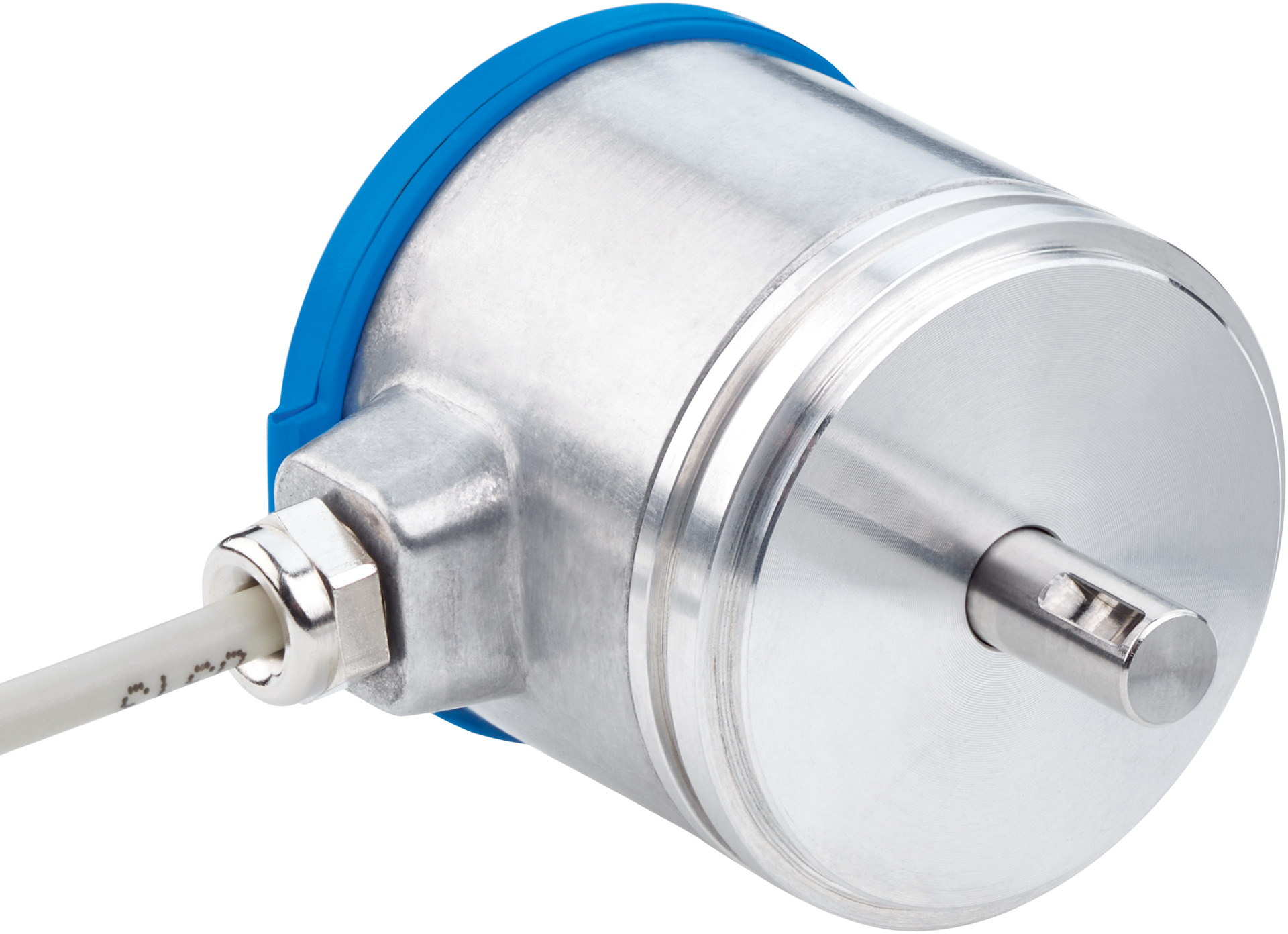

Analog Rotary Encoder ACM36-K1K0-K01 | 2,979 Steps/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The Analog Rotary Encoder ACM36-K1K0-K01 offers high precision with up to 2,979 steps per revolution and a robust IP65 rated enclosure, making it ideal for industrial automation and robotics. Designed for reliable position feedback, this encoder features a stainless steel shaft and operates within a wide temperature range of -30°C to +80°C, ensuring durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 850 years (EN ISO 13849-1)
- Number of steps per revolution: 2,979
- Number of revolutions: 16 (4 bit)
- Max resolution: 4 bit (2,979 x 16)
- Resolution per measuring step: ≥ 5.2 μA
- Accuracy: ± 0.2% based on programmed angle
- Measurement range: 0° to 5,760°, programmable
- Communication interface: Analog current 4...20 mA
- Load resistance: ≤ 600 Ω
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 to 33 V DC
- Current consumption: < 80 mA
- Electrical wiring: 3-wire
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12.4 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: AlMgSi
- Cable material: PVC
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.2 Ncm at +20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 10,000 min⁻¹
- Moment of inertia of rotor: 10 gcm²
- Bearing lifetime: 1 million revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65
- Operating temperature: -30°C to +80°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 25 g, 11 ms
- Vibration resistance: 4 g, 5 Hz to 100 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.1 kg
Key Features
- High resolution with up to 2,979 steps per revolution and 16 revolutions
- Analog current output (4...20 mA) for easy integration
- Robust mechanical design with stainless steel shaft and AlMgSi housing
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Low operating torque of 0.2 Ncm
- Reverse polarity protection included
- High mechanical durability with 1 million bearing revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and calibration.
Applications
- Industrial automation for precise angle measurement
- Robotics for position feedback
- Machine tools requiring high resolution rotary encoding
- Servo motor feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption supports energy-efficient systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ACM36-K1K0-K01 Analog Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
