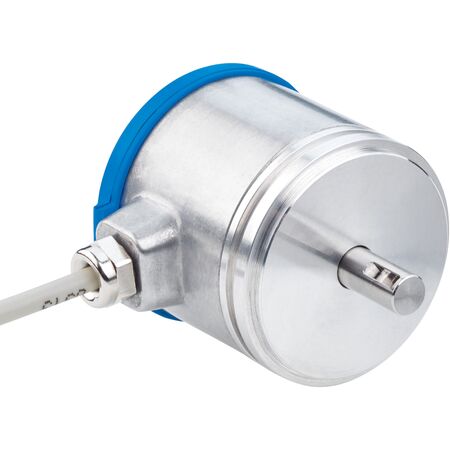

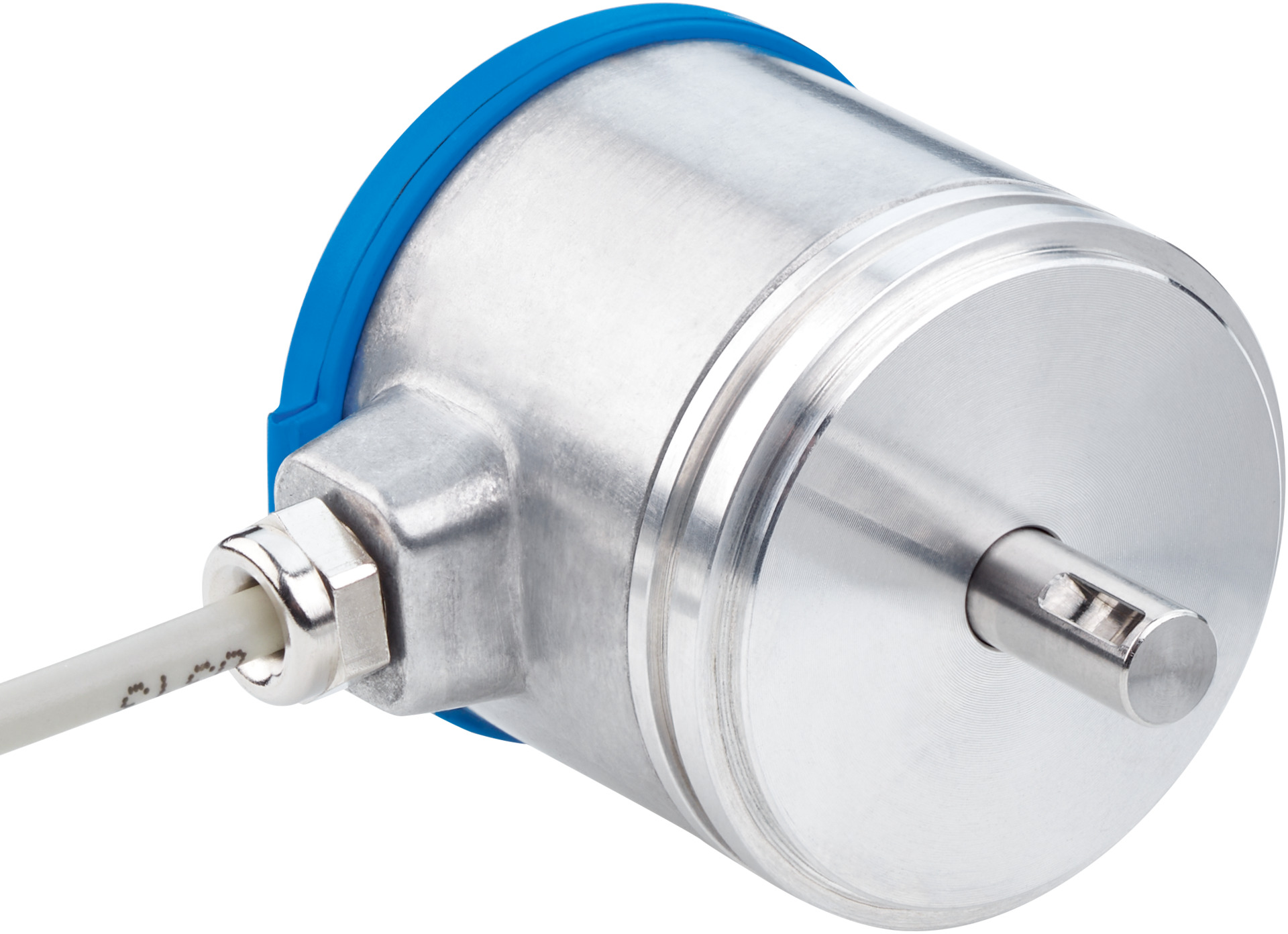

Analog Rotary Encoder ACM36-L1K0-K01 | 3,723 Steps/Rev | IP65 Rated | ±0.2% Accuracy | by SICK
The Analog Rotary Encoder ACM36-L1K0-K01 delivers high precision with up to 3,723 steps per revolution and an accuracy of ±0.2%. Designed for industrial automation, this robust encoder features a stainless steel shaft and an IP65 rated enclosure, making it ideal for harsh environments. Perfect for applications in robotics, servo motor feedback systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 850 years (EN ISO 13849-1)
- Number of steps per revolution: 3,723
- Number of revolutions: 16 (4 bit)
- Max resolution: 4 bit (3,723 x 16)
- Resolution per measuring step: ≥ 2.7 mV
- Measurement range: 0° to 5,760°, programmable
- Accuracy: ±0.2% based on programmed angle
- Communication interface: Analog voltage 0...10 V
- Load resistance: ≥ 10 kΩ
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 to 33 V DC
- Current consumption: < 80 mA
- Electrical wiring: 3-wire
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12.4 mm
- Shaft material: Stainless steel 1.4305
- Housing material: AlMgSi
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.2 Ncm at +20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 10,000 min⁻¹
- Bearing lifetime: 1 million revolutions
- Enclosure rating: IP65
- Operating temperature range: -30°C to +80°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 25 g, 11 ms
- Resistance to vibration: 4 g, 5 Hz to 100 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- High resolution with up to 3,723 steps per revolution and 16 revolutions
- Accuracy of ±0.2% based on programmed angle
- Robust mechanical design with stainless steel shaft and AlMgSi housing
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Reverse polarity protection and low current consumption (<80 mA)
- Cable connection with 1.5 m radial cable
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and calibration.
Applications
- Industrial automation for precise angle measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ACM36-L1K0-K01 Analog Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
