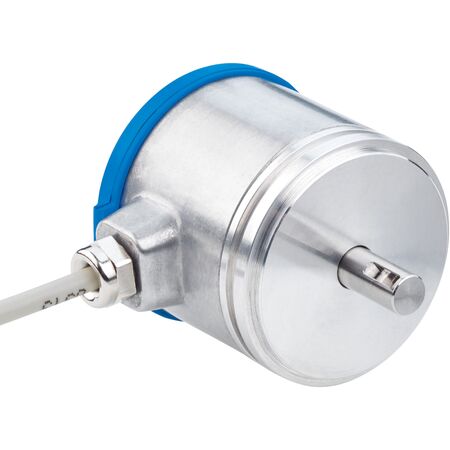

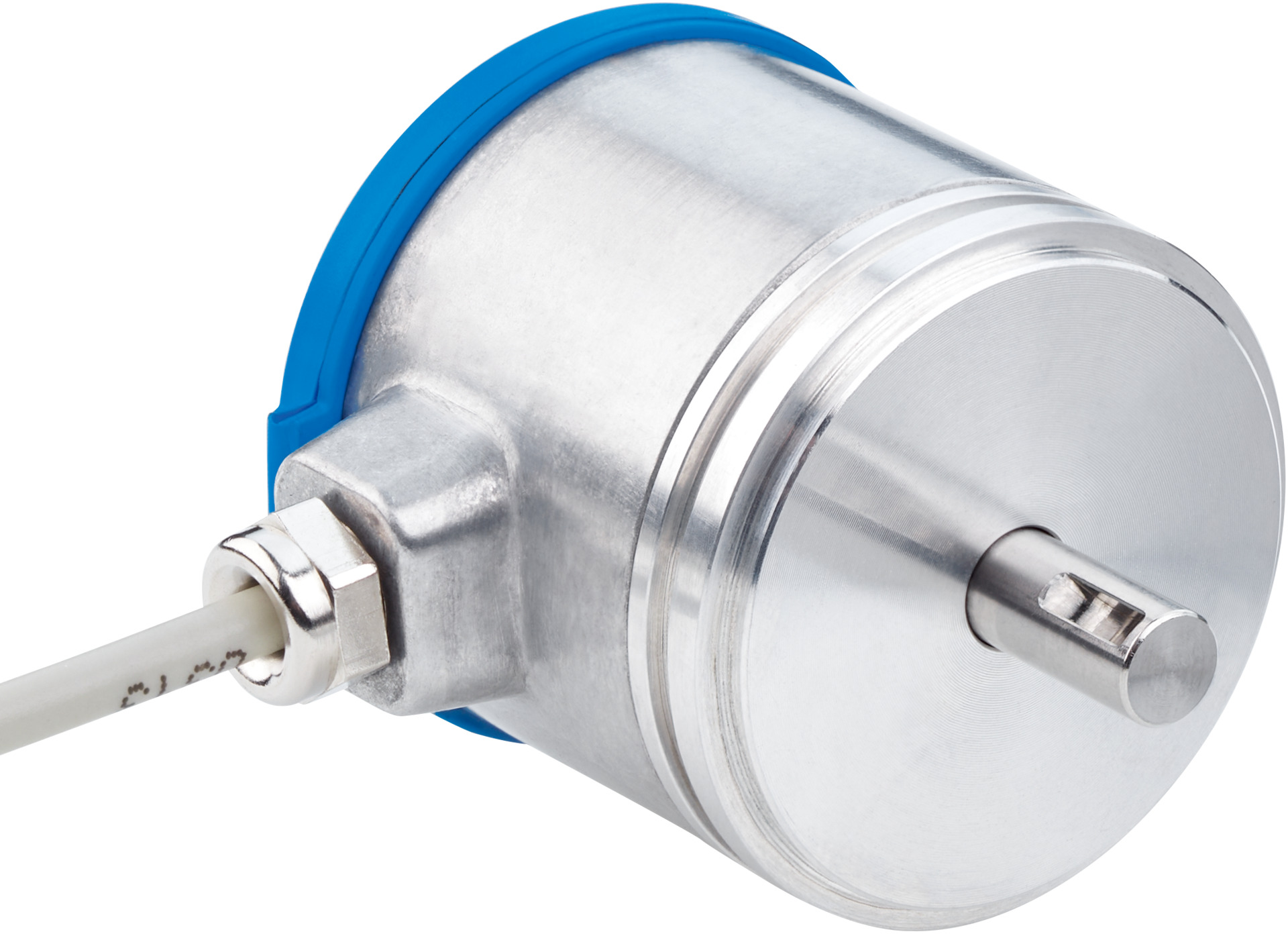

Analog Rotary Encoder ACS36-L1K0-K01 | 3723 Steps/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The Analog Rotary Encoder ACS36-L1K0-K01 delivers high precision with up to 3,723 steps per revolution, making it ideal for industrial automation and motion control applications. Its robust stainless steel shaft and IP65 rated enclosure ensure durability in challenging environments, while the analog voltage output simplifies integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 900 years (EN ISO 13849-1)
- Number of steps per revolution: 3,723
- Resolution per measuring step: 2.7 mV to 25.1 mV
- Angular resolution: 0.09° to 0.1°
- Measurement range: 0° to 360°, programmable
- Minimum measuring range: ≥ 35°
- Accuracy: ±0.2% based on programmed angle
- Communication interface: Analog voltage output 0...10 V
- Load resistance: ≥ 10 kΩ
- Connection type: 1.5 m radial cable
- Supply voltage: 19 to 33 V DC
- Current consumption: < 80 mA
- Electrical wiring: 3-wire with reverse polarity protection
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12.4 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: AlMgSi
- Cable material: PVC
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.2 Ncm at +20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 3,000 min⁻¹
- Moment of inertia of rotor: 10 gcm²
- Bearing lifetime: 1 million revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +80°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 25 g, 11 ms
- Vibration resistance: 4 g, 5 Hz to 100 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.1 kg
Key Features
- High resolution up to 3,723 steps per revolution
- Analog voltage output (0...10 V) for easy integration
- Robust mechanical design with solid stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Low starting torque of 0.5 Ncm and operating torque of 0.2 Ncm
- Reverse polarity protection and low current consumption (<80 mA)
- High mechanical durability with bearing lifetime of 1 million revolutions
- Resistance to shocks (25 g) and vibrations (4 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise angle measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Process control requiring high resolution angular measurement
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ACS36-L1K0-K01 Analog Solid Shaft Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
