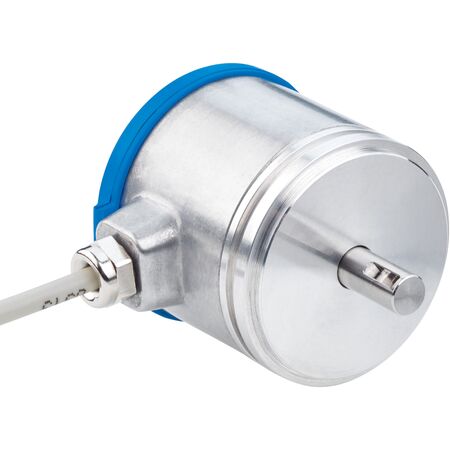

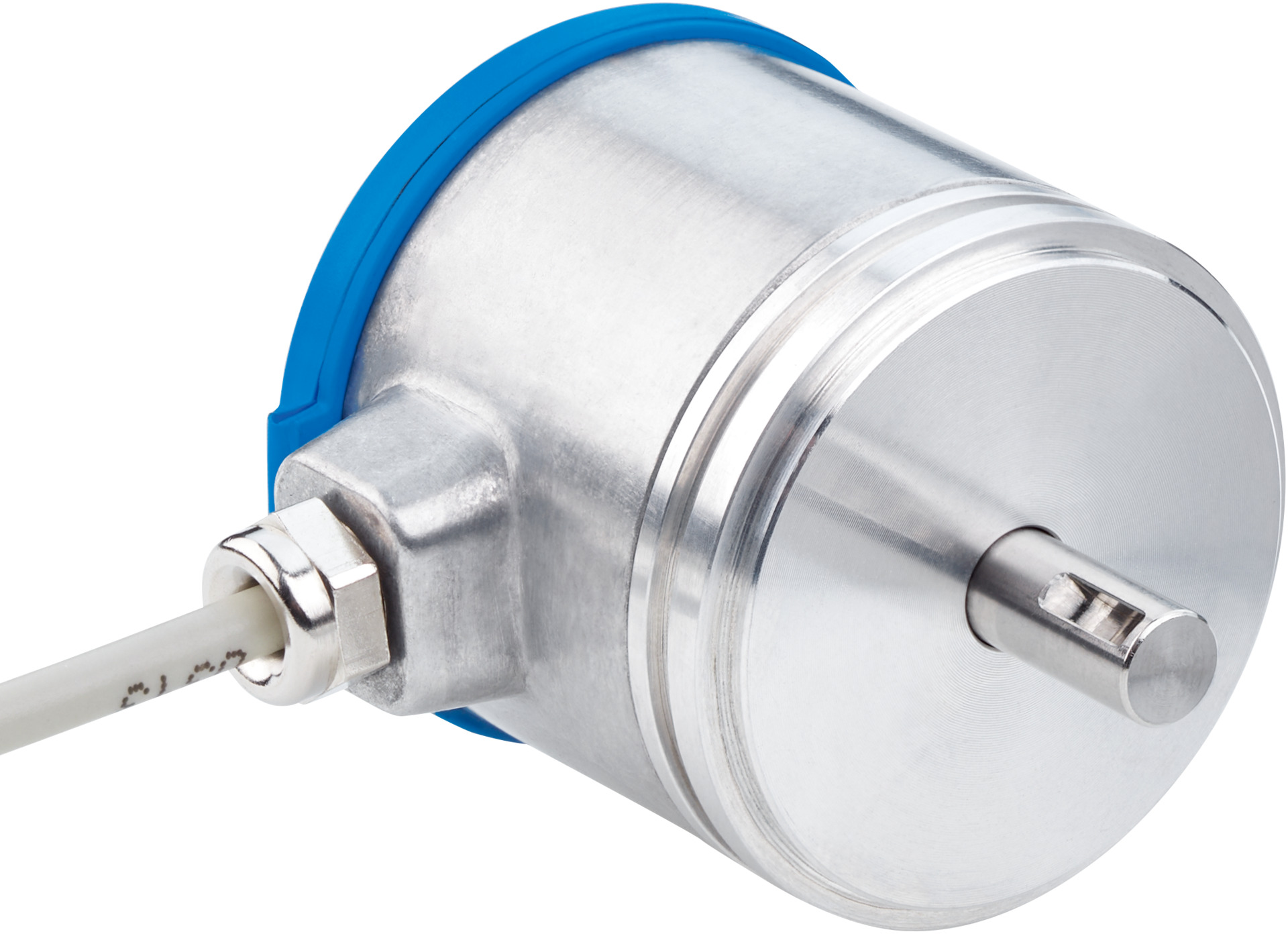

Analog Shaft Encoder ACS36-K1K0-K01 | 2,979 Steps/Rev | IP65 Rated | Robust Solid Shaft | by SICK
The Analog Shaft Encoder ACS36-K1K0-K01 delivers high precision with up to 2,979 steps per revolution, making it ideal for industrial automation and robotics. With an IP65 rated enclosure, it ensures reliable performance in harsh environments, while the analog current output allows for easy integration into various systems. Designed for durability and low operating torque, this encoder is perfect for applications requiring accurate position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 900 years (EN ISO 13849-1)
- Number of steps per revolution: 2,979 max resolution
- Resolution per measuring step: 5.4 μA to 40.2 μA
- Angular resolution: 0.09° to 0.12°
- Measurement range: 0° to 360°, programmable
- Minimum measuring range: ≥ 35°
- Accuracy: ±0.2% based on programmed angle
- Communication interface: Analog current output 4...20 mA
- Load resistance: ≤ 600 Ω
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 to 33 V DC
- Current consumption: < 80 mA
- Electrical wiring: 3-wire with reverse polarity protection
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm, length: 12.4 mm, with flat
- Materials: Shaft - stainless steel 1.4305, Flange and housing - AlMgSi, Cable - PVC
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.2 Ncm at +20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 3,000 min⁻¹
- Moment of inertia of rotor: 10 gcm²
- Bearing lifetime: 1 million revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature: -30°C to +80°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 25 g, 11 ms
- Vibration resistance: 4 g, 5 Hz to 100 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- High resolution up to 2,979 steps per revolution
- Analog current output 4...20 mA for easy integration
- Robust solid shaft with stainless steel material and flat characteristic
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Low operating torque of 0.2 Ncm for minimal mechanical load
- Reverse polarity protection and 3-wire electrical wiring
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, mounting, and compliance with electrical safety standards.
Applications
- Industrial automation for precise angle measurement
- Robotics requiring high-resolution position feedback
- Machine tools and servo drives
- Process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long service life reduce waste and replacement frequency
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ACS36-K1K0-K01 Analog Solid Shaft Encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
