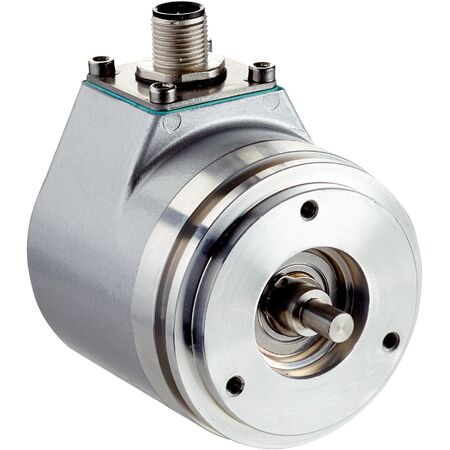

Analog Shaft Encoder ACM60B-S1LE13x06 | 13,107 Steps/Rev | IP65/IP67 Rated | by SICK
The Analog Shaft Encoder ACM60B-S1LE13x06 delivers high precision with up to 13,107 steps per revolution, making it ideal for industrial automation and robotics. Its robust design features a stainless steel shaft and aluminum housing, ensuring durability in harsh environments. With an IP65/IP67 rating and a wide operating temperature range from -30°C to +80°C, this encoder is perfect for applications requiring reliable angular position measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 600 years (EN ISO 13849-1)
- Max resolution: 13,107 steps per revolution x 64 revolutions (6 bit)
- Measurement range: 0° to 23,040°, programmable
- Accuracy: ±0.1% based on programmed angle
- Communication interface: Analog voltage output 0...10 V
- Load resistance: ≥10 kΩ
- Connection: Male M12, 5-pin radial connector
- Supply voltage: 18 to 33 V DC
- Current consumption: <80 mA
- Mechanical design: Solid shaft with flat, shaft diameter 6 mm, shaft length 10 mm
- Materials: Stainless steel shaft, aluminum flange and die-cast aluminum housing
- Operating torque: 0.3 Ncm at 20°C
- Permissible shaft loading: 60 N radial, 30 N axial
- Operating speed: up to 10,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -30°C to +80°C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 4 g, 5 Hz to 100 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.4 kg
Key Features
- High resolution with up to 13,107 steps per revolution and 64 revolutions
- Analog voltage output (0...10 V) for easy integration
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection for harsh environments
- Wide operating temperature range from -30°C to +80°C
- Low operating torque of 0.3 Ncm for efficient operation
- Reverse polarity protection and low current consumption (<80 mA)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and calibration.
Applications
- Industrial automation for precise angular position measurement
- Robotics requiring high resolution and accuracy
- Machine tools and servo drives
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ACM60B-S1LE13x06 Analog Solid Shaft Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
