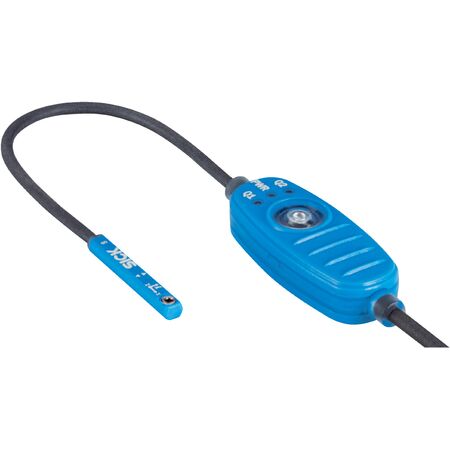

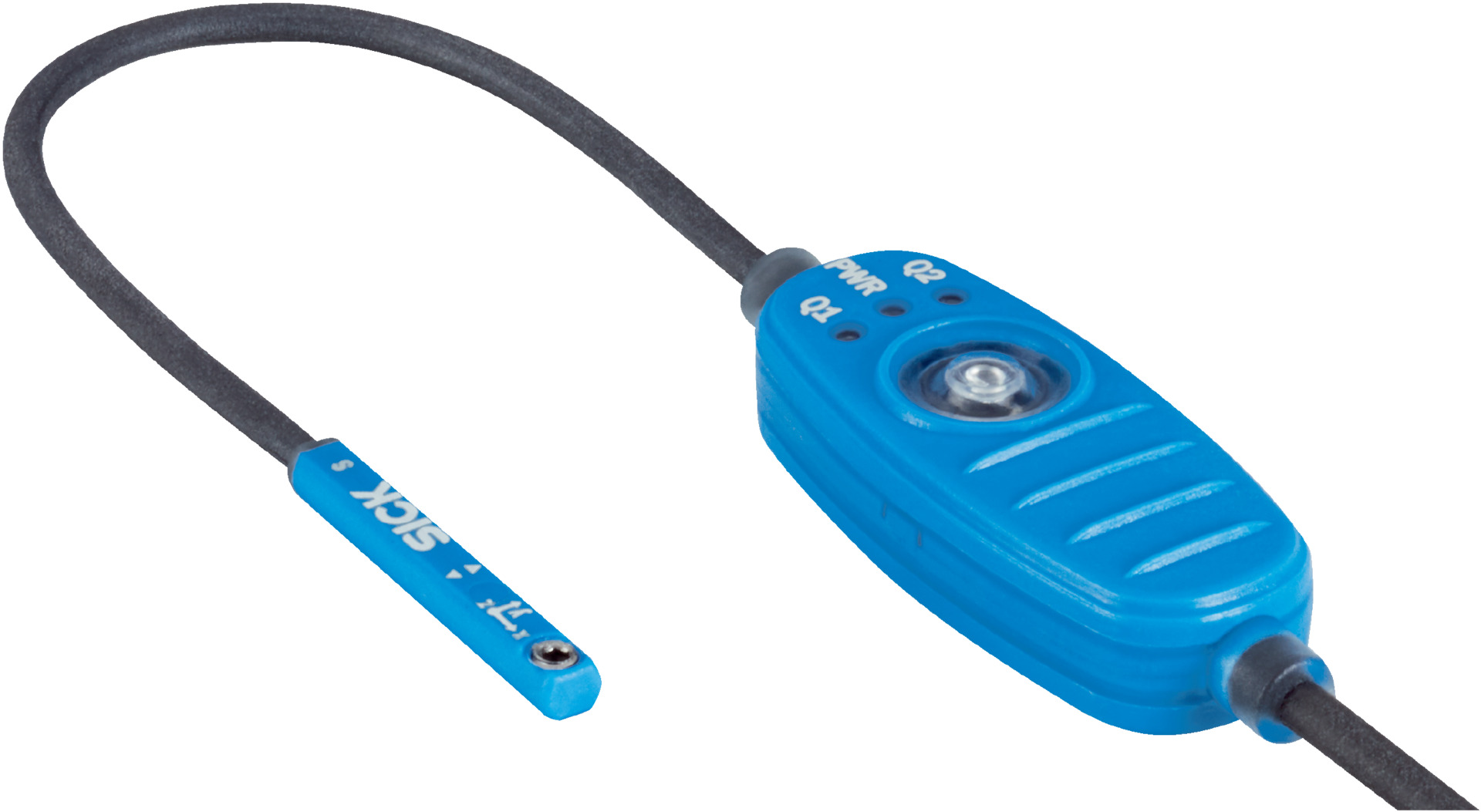

Analog Slot Cylinder Sensor | C-Slot Type | 0 V to 10 V Output | IP67 Rated | by SICK
The Analog Slot Cylinder Sensor is designed for precise position sensing in industrial automation, featuring a C-slot type with a measuring range of 50 mm and an analog output voltage range of 0 V to 10 V. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in challenging environments, making it ideal for use with various cylinder types including T-slot and round body cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Measuring range: 50 mm
- Output function: Analog 0 V to 10 V
- Supply voltage: 13 V DC to 30 V DC
- Min. load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Power consumption: ≤ 550 mW
- Magnetic field sensitivity: 2 mT to 20 mT
- Resolution: 0.01 mm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.05 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: 4-wire cable, 0.1 m length
- Housing material: Plastic PA, strengthened
- Cable material: PUR
- Control element material: Plastic TPU, reinforced
- Dimensions (H x L x W): 15mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type with completely embedded mounting for protection
- Analog output voltage range 0 V to 10 V
- Detection zone from 0 mm to 50 mm
- IP67 rated enclosure for dust and water protection
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- Teach-in button for dynamic measuring range adjustment
- High resolution of 0.01 mm and repeat accuracy of 0.05 mm
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Status indicator LED for operational feedback
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and sensor calibration.
Applications
- Industrial automation for position sensing in cylinders
- Use with Festo, Zimmer, Gimatic cylinders
- Suitable for T-slot, round body, profile, and tie-rod cylinders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 550 mW reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MPS-G50CFH15D43ZZZ Analog Slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
