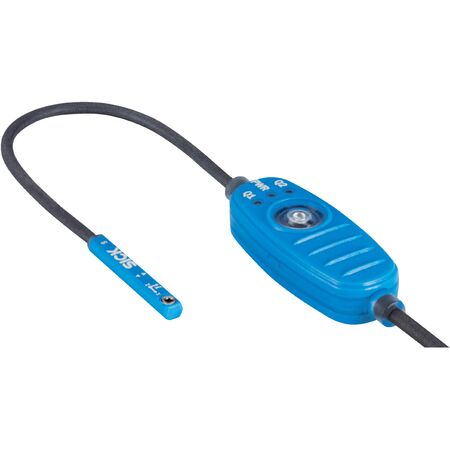

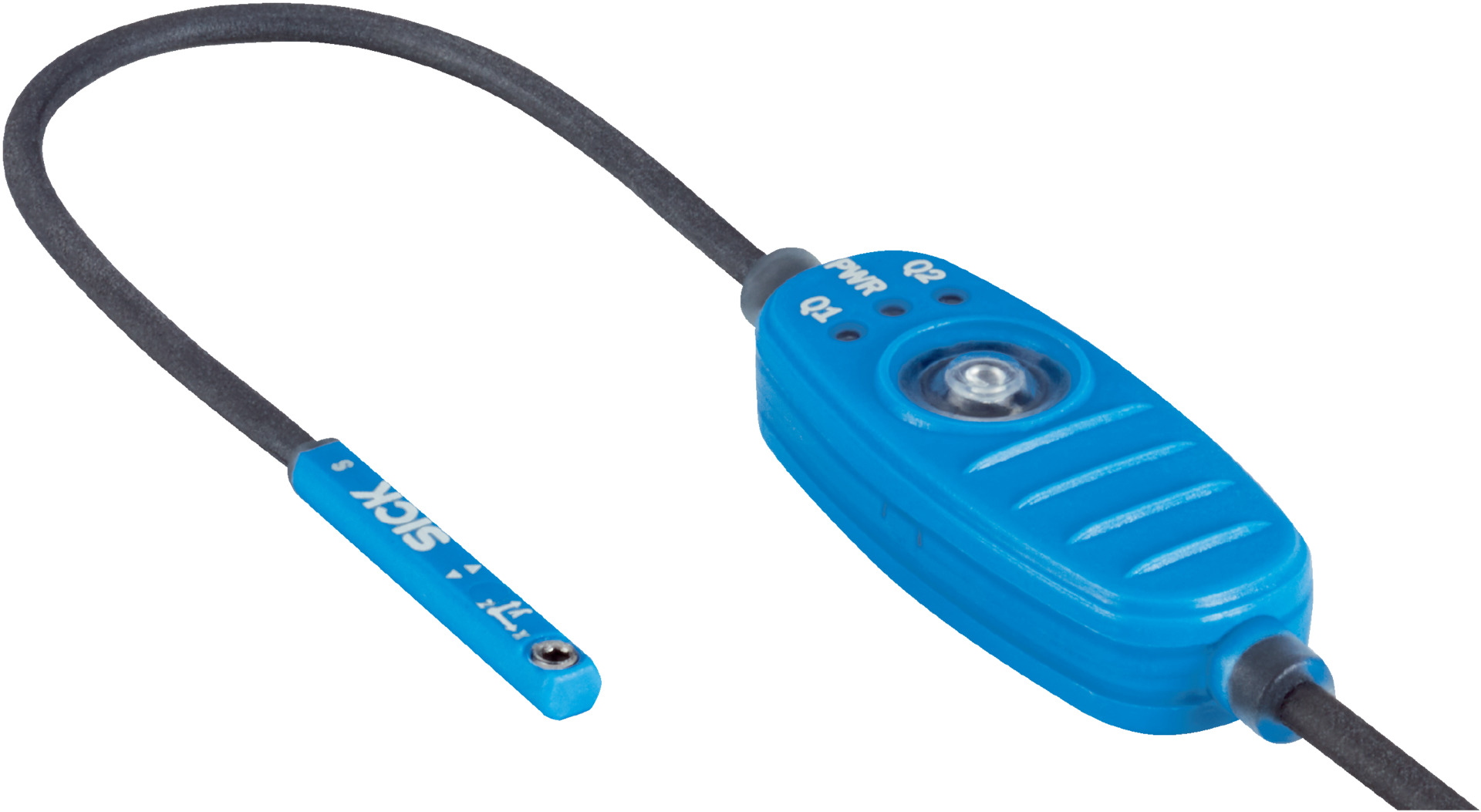

Analog Slot Cylinder Sensor MPS-G50CSH15D43ZZZ | C-Slot Type | 0 V to 10 V Output | IP67 Rated | by SICK
The Analog Slot Cylinder Sensor MPS-G50CSH15D43ZZZ is designed for precise position sensing in industrial automation, featuring a C-slot type with a measuring range of 50 mm and an analog output of 0 V to 10 V. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in demanding environments, making it ideal for integration with various pneumatic cylinder types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Measuring range: 50 mm
- Output function: Analog 0 V to 10 V
- Electrical wiring: DC 4-wire
- Supply voltage: 13 V DC to 30 V DC
- Min. load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Power consumption: ≤ 550 mW
- Magnetic field sensitivity: 2 mT to 20 mT
- Resolution: 0.01 mm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.05 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliance: EN 60947-5-7
- Connection type: 4-wire cable, 0.1 m length
- Housing material: Plastic PA, strengthened
- Cable material: PUR
- Control element material: Plastic TPU, reinforced
- Dimensions (H x L x W): 25mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type with completely embedded mounting for protection
- Analog output voltage range 0 V to 10 V
- Detection zone up to 50 mm
- IP67 rated enclosure for dust and water protection
- Dynamic teach-in button for easy adjustment and resetting of measuring range
- High resolution of 0.01 mm and repeat accuracy of 0.05 mm
- Short-circuit and reverse polarity protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper setup and safety.
Applications
- Industrial automation for position sensing in pneumatic cylinders
- Measurement and control in manufacturing processes
- Integration with SMC, PHD, Bimba cylinder types
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 550 mW reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK MPS-G50CSH15D43ZZZ Analog Slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
