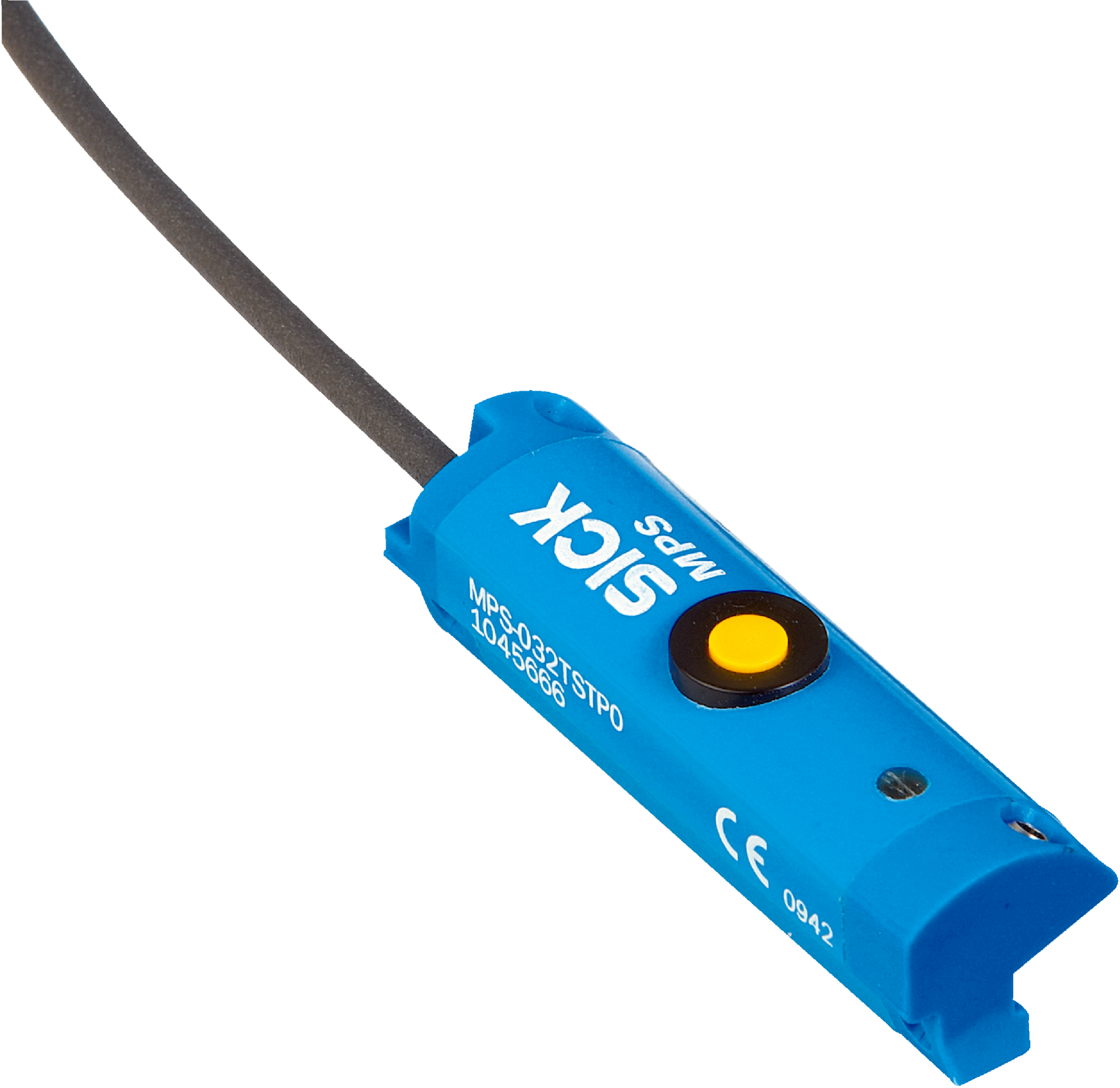

Analog T-slot Cylinder Position Sensor | 224 mm Measuring Range | IP67 Rated | 0 V to 10 V Output | by SICK

BRAND: SICK
SKU: 1050686
$1,100.80 List price: $1,383.60
+ −
30 Days Return Electricians Unlock Trade Access
The Analog T-slot Cylinder Position Sensor is designed for precise cylinder position measurement in industrial automation. With a measuring range of 224 mm and an IP67 rated enclosure, it ensures reliable performance in harsh environments. This sensor features both voltage and current output options, making it ideal for factory automation and robotics applications, while its durable design minimizes electronic waste.

Alternatively Known As: Cylinder Position Sensor, Analog Cylinder Sensor, T-slot Cylinder Sensor, SICK Position Sensor

Technical Specifications
  • Measuring range: 224 mm
  • Housing length: 237 mm
  • Output function: Analog voltage 0 V to 10 V and current 4 mA to 20 mA
  • Electrical wiring: DC 4-wire
  • Supply voltage: 15 V DC to 30 V DC
  • Power consumption: 22 mA without load
  • Max load resistance: ≤ 500 Ω at 24 V
  • Min load resistance: ≥ 2 kΩ
  • Protection class: III
  • Time delay before availability: 1.5 s
  • Magnetic field sensitivity: 4 mT to 30 mT
  • Resolution: 0.03% FSR (max ≥ 0.05 mm)
  • Linearity error: 0.3 mm
  • Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
  • Sampling rate: 1 ms
  • Reverse polarity and short-circuit protection: Yes
  • Status indicator LED: Yes
  • Ambient operating temperature: -20 °C to +70 °C
  • Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
  • EMC: According to EN 60947-5-7
  • Connection type: Cable with M8 male connector, 4-pin, 0.3 m
  • Cable diameter: 2.6 mm
  • Material: Plastic housing, PUR cable
  • Dimensions (H x L x W): 30mm x 237mm x 30mm
  • Weight: 0.5 kg
Key Features
  • T-slot cylinder type compatible with round body, profile, tie-rod, and dovetail groove cylinders
  • Analog output with voltage (0 V to 10 V) and current (4 mA to 20 mA) options
  • IP67 rated enclosure for dust and water protection
  • Supply voltage range from 15 V DC to 30 V DC
  • Short-circuit and reverse polarity protection
  • Status indicator LED and teach-in functionality for easy setup
  • High resolution of 0.03% FSR and repeat accuracy of 0.06% FSR
  • Shock and vibration resistant (30 g, 11 ms / 10 to 55 Hz, 1 mm)
  • Cable with M8 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
  • Industrial automation for precise cylinder position measurement
  • Factory automation systems
  • Robotics and mechanical engineering requiring analog position feedback
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption of 22 mA reduces energy usage
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

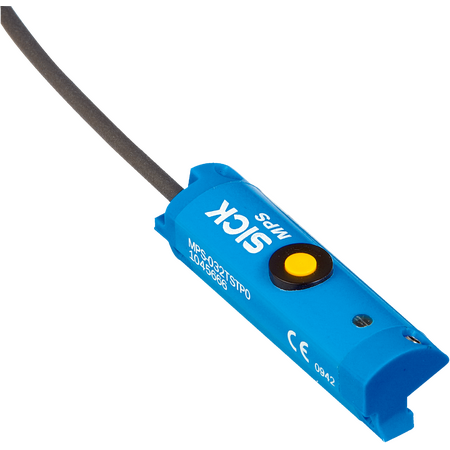

The SICK MPS-224TSTP0 Analog T-slot Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
