Analogue Data Gathering Panel DGP Board Only Tecom

BRAND: Ness
SKU: 120-401
$993.60 List price: $1,324.80
+ −
30 Days Return Electricians Unlock Trade Access

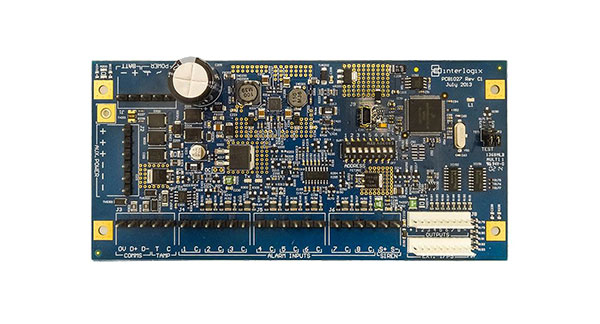

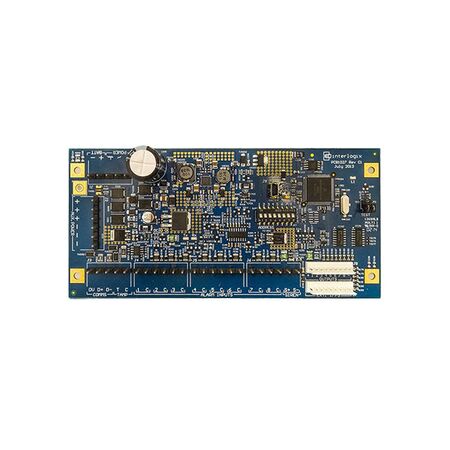

Tecom analogue data gathering panel supplied as a board only. Ideal for Tecom alarm and access control installs.

Alternatively Known As: Tecom TS1020B, Challenger Analogue DGP, Analogue Data Gathering Panel, Alarm Input and Output Expansion Board

Technical Specifications
  • Model: TS1020B
  • Power Supply: 16.8 VAC
  • Current Consumption: 50 mA, plus 10 mA per fitted expander
  • Inputs: 8 standard, expandable to 32
  • Siren Output: 1
  • Maximum Outputs: 16 with expansion modules
  • Maximum DGPs per Panel: 15 for Challenger V8; 31 for Challenger10
  • Maximum Distance from Main Panel: 1,500 m, extendable with LAN isolation interfaces
  • Data Bus Monitoring: Yes
  • End-of-Line Resistors: Supports various end-of-line resistor values
  • Operating Temperature: 0 to 50°C
  • Relative Humidity: 0 to 95% non-condensing
  • Regulatory Marking: ACMA C-Tick for Australia and New Zealand
  • Board Format: Tecom size A
  • Dimensions (H x L x W): 20mm x 176.5mm x 85mm
  • Weight: 0.25 kg
Key Features
  • Board-only version of the Tecom analogue Data Gathering Panel
  • Adds supervised inputs and expansion capability to Challenger alarm systems
  • Eight onboard inputs, expandable to 32 using compatible input expansion modules
  • Supports up to 16 outputs with compatible relay or output expansion boards
  • Onboard siren output can also be configured as a general-purpose output
  • Input resistance values can be viewed through a compatible LCD keypad
  • Intelligent onboard power supply supports power-consumption and battery-charging checks
  • Compatible with Challenger V8 and Challenger10 systems
Professional Installation Requirements
  • Installation, wiring, addressing and commissioning should be completed by a suitably qualified security-system technician in accordance with the applicable system documentation and AS/NZS 2201.1 requirements. Connection to the 16.8 VAC supply and alarm/access-control wiring must be isolated and tested before commissioning.
Applications
  • Expanding input capacity on Tecom Challenger alarm systems
  • Intruder alarm installations
  • Commercial security systems
  • Access control installations using compatible Challenger panels
  • Retrofit and upgrade projects requiring additional alarm inputs or relay outputs
Standards & Compliance
  • AS/NZS 2201.1:2007 — applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating control equipment and DGPs
Environmental Benefits
  • Board-only supply avoids the material use and packaging associated with an additional enclosure
  • Expandable architecture can extend the useful life of existing Challenger systems and reduce replacement waste
  • Long-term serviceability and compatibility with expansion modules can reduce unnecessary full-system replacement
Warranty Information

5-year warranty is listed by an Australian Tecom distributor for the TS1020B; confirm warranty terms, exclusions and claim procedures with the supplying distributor. ([ness.com.au](https://ness.com.au/120-401?utm_source=openai))

Available Now

Available through Tecom/Challenger security-system distributors and authorised Australian security-equipment suppliers; confirm current stock and system compatibility before ordering.
