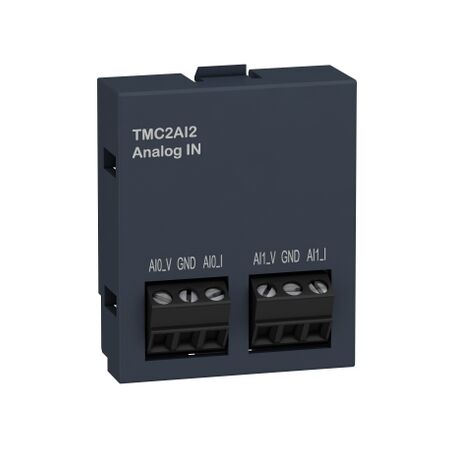

Analogue Input Cartridge 2 Inputs | 12-Bit Resolution | Modicon M221 Compatible by Clipsal
Analogue input cartridge with 2 inputs and 12-bit resolution—ideal for industrial automation systems. Built for precise data acquisition, compatible with Modicon M221, supporting current and voltage inputs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modicon M221, Analogue input cartridge, 2 analog inputs, I/O extension
Brand: Clipsal
SKU: TMC2AI2
Alternatively Known As: Modicon M221 AI Cartridge, Analogue Input Module, M221 Analogue Input
Technical Specifications
- Analogue input number: 2
- Analogue input type: current 4...20 mA, 0...20 mA; voltage 0...10 V
- Analogue input resolution: 12 bits
- Conversion time: 20 ms
- Sampling duration: 10 ms
- Absolute accuracy error: +/- 0.1 % of full scale at 25 °C
- Temperature drift: +/- 0.02 %FS/°C
- Input impedance: <= 250 Ohm current, >= 1 MOhm voltage
- Maximum cable distance: <30 m for input
- Dimensions (H x L x W): 41mm x 15mm x 35mm
- Weight: 0.015 kg
Key Features
- 2 analogue inputs for versatile data acquisition.
- Compatible with Modicon M221C.
- 12-bit resolution for accurate measurements.
- Supports current and voltage input types.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems requiring analogue input processing.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with California Proposition 65 for chemical safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Modicon M221 Analogue Input Cartridge is available now for immediate purchase. Ideal for industrial automation applications.
