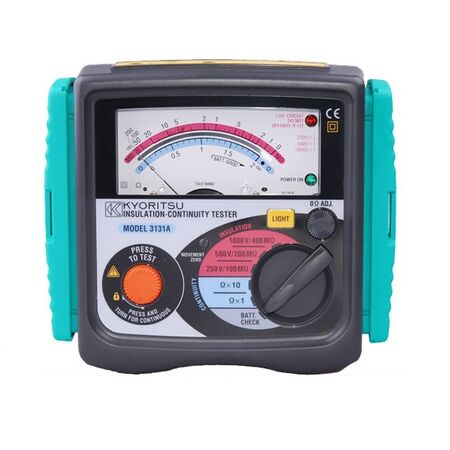

Analogue Insulation Tester | 1000V | Live Circuit Warning
Analogue insulation tester with 1000V capability and live circuit warning—ideal for mining applications. Built for safety, with backlight for dim conditions and fixed test leads for added security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Analogue Insulation Tester | 1000V | Live Circuit Warning
SKU: 3131A
Alternatively Known As: Analogue Megger, Insulation Resistance Tester, 1000V Insulation Tester, Live Circuit Insulation Tester
Technical Specifications
- Insulation Test Ranges: 100MΩ at 250V, 200MΩ at 500V, 400MΩ at 1000V
- Continuity Test Range: up to 20Ω
- Live Circuit Warning: Lamp and audible alarm
- Automatic Discharge: Circuit capacitance discharged when test button released
- Fuse Protection: Continuity range only
- Battery Check: LED indicator
- Backlight: For use in dimly lit environments
- Test Button: PRESS TO TEST with lock down feature
- Test Leads: Fixed leads with alligator clips
- Dimensions (H x L x W): 90mm x 60mm x 150mm
- Weight: 0.5 kg
Key Features
- Test insulation up to 100MΩ at 250V, 200MΩ at 500V, 400MΩ at 1000V
- Continuity testing up to 20Ω
- LIVE circuit warning lamp plus audible warning
- Automatic discharge of circuit capacitance when TEST button is released
- Fuse protected continuity range
- Battery check LED
- Front panel zero adjust
- Back light function for working in dimly lit conditions
- PRESS TO TEST button with lock down feature
- Fixed test leads and fixed alligator clips for added safety
Professional Installation Requirements
- Recommended to be used by qualified electricians or trained professionals for accurate and safe testing.
Applications
- Electrical insulation testing in mining applications
- General electrical maintenance and troubleshooting
- Testing insulation resistance in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Battery check LED helps optimize battery usage and reduce waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Kyoritsu 3131A Analogue Insulation Tester is available now for immediate purchase. Ideal for electrical maintenance, mining, and industrial applications.
