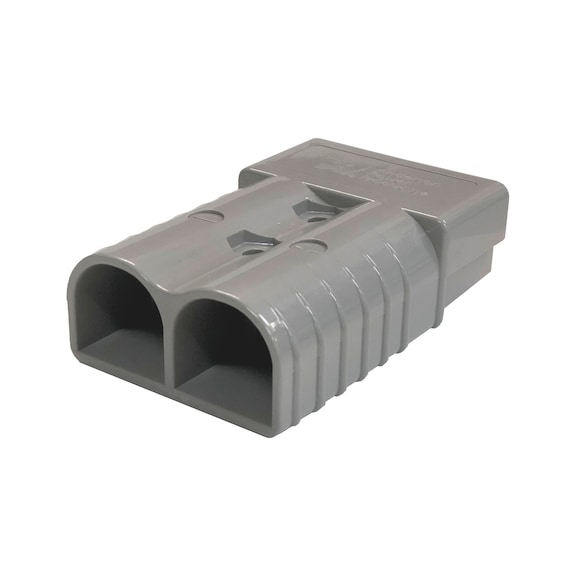

Anderson High Current Connector | 175A Capacity | Fully Insulated | Grey Color | @Each of 1 | by Wurth
The Anderson High Current Connector is designed for heavy-duty electrical connections, featuring a robust 175A capacity and fully insulated for safety. Ideal for industrial machinery, automotive systems, and renewable energy applications, this connector ensures solid contact and quick connections with its genderless design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Anderson High Current Connector | 175A Capacity | Fully Insulated | Grey Color | @Each of 1 | by Wurth
Brand: Wurth
SKU: 555120020
Alternatively Known As: Anderson Connector 175A, High Current Anderson Plug, Heavy Duty Electrical Connector
Technical Specifications
- Max. nominal voltage: 600 V
- Max. current: 175 A
- Temperature range: -20 to 105 °C
- Material: Plastic
- Colour: Grey
- Dimensions (H x L x W): 30mm x 90mm x 60mm
- Weight: 0.1 kg
Key Features
- High current capacity suitable for heavy duty applications
- Fully insulated for safety
- Ensures solid contact between two cables
- Genderless design for quick and easy connection
- Withstands large amperage applications
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Heavy duty electrical connections
- Industrial machinery
- Automotive and transport electrical systems
- Renewable energy systems
- Battery connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Anderson High Current Connector PLGHSNG CON ANDERSON GREY 175A by Wurth is available now for immediate purchase. Ideal for heavy duty electrical connection applications.
