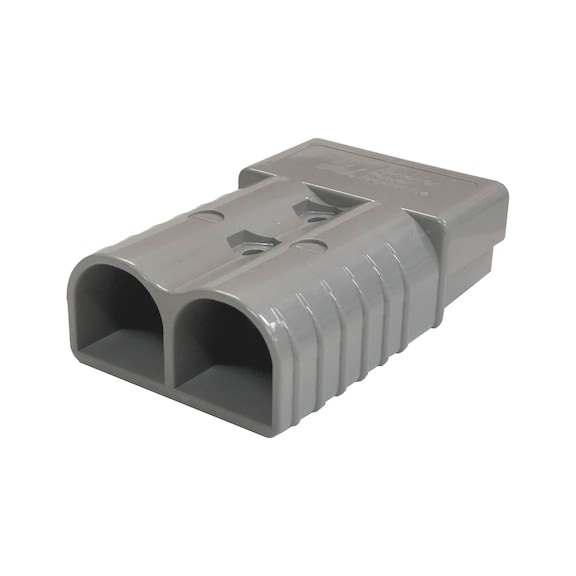

Anderson High Current Connector | 50A Capacity | Fully Insulated | Grey Color | @Each of 1 | by Wurth
The Anderson High Current Connector is designed for heavy-duty electrical connections, featuring a robust 50A capacity and fully insulated for safety. Ideal for industrial machinery, automotive, and renewable energy systems, this connector ensures solid contact and quick connections with its genderless design, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Anderson High Current Connector | 50A Capacity | Fully Insulated | Grey Color | @Each of 1 | by Wurth
Brand: Wurth
SKU: 555120011
Alternatively Known As: Anderson Power Connector, High Current Electrical Connector, 50A Anderson Plug, Heavy Duty Connector
Technical Specifications
- Max. nominal voltage: 600 V
- Max. current: 50 A
- Temperature range: -20 to 105 °C
- Material: Plastic
- Colour: Grey
- Dimensions (H x L x W): 30mm x 90mm x 60mm
- Weight: 0.1 kg
Key Features
- High current capacity suitable for heavy duty applications
- Fully insulated for safety
- Ensures solid contact between two cables
- Genderless design for quick and easy connection
- Withstands large amperage applications
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Heavy duty electrical connections
- Industrial machinery
- Automotive and transport
- Renewable energy systems
- Battery connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Insulation materials improve safety and reduce electrical waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Anderson High Current Connector PLGHSNG CON ANDERSON GREY 50A 1 PCS by Wurth is available now for immediate purchase. Ideal for heavy duty electrical connection applications.
