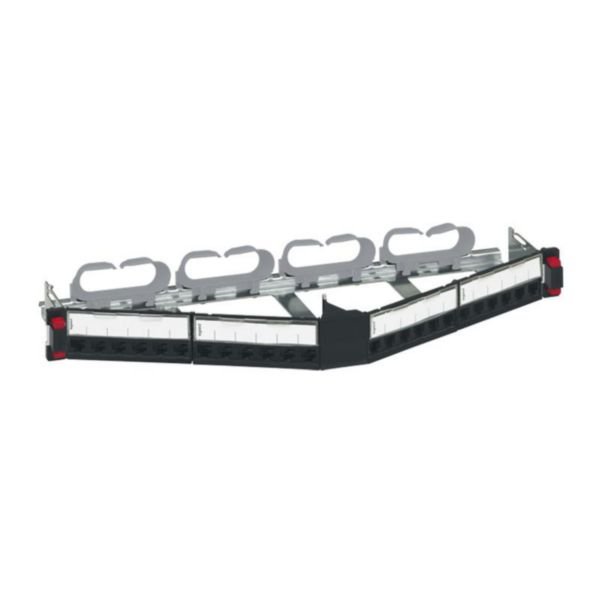

19 Inch Angled Patch Panel | 24 RJ45 Ports | Screwless Mounting | IK03 Impact Rating | @Each of 1 | by Legrand
The 19 Inch Angled Patch Panel with 24 RJ45 ports is designed for efficient network management in data centers and telecommunications cabinets. Featuring a new generation quick-fix mechanism for screwless mounting and an IK03 impact strength rating, this patch panel ensures reliable performance and easy installation. Ideal for structured cabling systems, it supports both flexible and rigid cables, making it a versatile choice for IT network infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 19 Inch Angled Patch Panel | 24 RJ45 Ports | Screwless Mounting | IK03 Impact Rating | @Each of 1 | by Legrand
Brand: Legrand
SKU: 033792
Alternatively Known As: 19 inch angled patch panel, 24 port RJ45 patch panel, angled network patch panel, screwless mounting patch panel
Technical Specifications
- Number of connectors: 24 RJ45 8(8)
- Connection type: Insulation displacement connector
- Mounting: 19 inch (482.6 mm) rack mount, 1U height
- Colour: Black (RAL 9017)
- Impact strength: IK03
- Operating temperature: -25°C to 70°C
- Storage temperature: -40°C to 70°C
- Cable support: Zigzag cable guide
- Prewired: No
- Terminal marking: Yes
- Dimensions (H x L x W): 43.8mm x 212.7mm x 482.6mm
- Weight: 1.5 kg
Key Features
- 19 inch angled patch panel with 24 RJ45 ports
- New generation quick-fix mechanism for automatic screwless mounting
- Rear cable guide to hold cables during maintenance
- Supplied with coloured labels (white, yellow, blue, red)
- Angled design allows correct cable radius and vertical cable management
- Compatible with flexible or rigid cables
- Label space for terminal marking
- IK03 impact strength rating
- Operating temperature range from -25°C to 70°C
Professional Installation Requirements
- Professional installation by qualified IT or network technicians is recommended to ensure proper mounting and cable management.
Applications
- Data centers and server rooms
- Telecommunications cabinets
- Structured cabling systems in commercial buildings
- IT network infrastructure installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Screwless mounting reduces installation time and waste
- Durable design extends product lifecycle, reducing replacement frequency
Warranty Information
Standard Legrand warranty applies; typically 1-3 years depending on region and purchase terms.
Available Now
The Legrand Angled Patch Panel 19 Inch with 24 RJ45 ports is available for immediate purchase, ideal for IT network infrastructure and data center applications.
