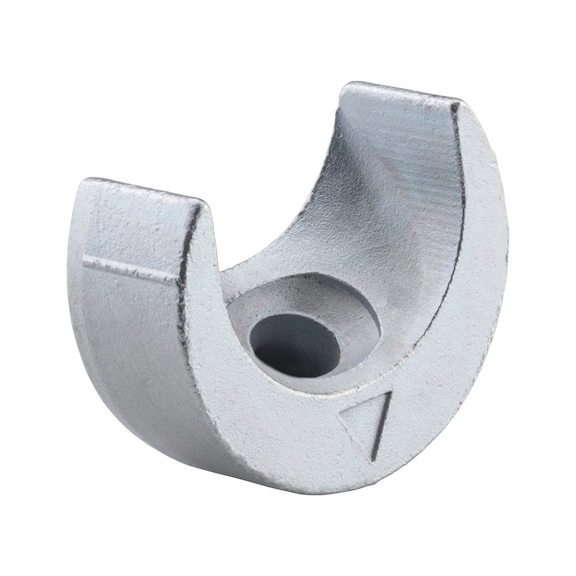

Angled Washer 30° CLT for ASSY Screws | Zinc Plated Steel | Gap-Free Assembly | @Pack of 25 | by Wurth
The Angled Washer 30° CLT for ASSY Screws is designed for efficient timber construction, featuring a zinc-plated steel finish and a gap-free assembly for secure connections. Ideal for structural woodwork and element construction, this washer ensures quick and reliable installation with predefined factory positioning, making it perfect for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angled Washer 30° CLT for ASSY Screws | Zinc Plated Steel | Gap-Free Assembly | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 457700462
Alternatively Known As: 30 Degree CLT Angled Washer, CLT Washer for ASSY Screws, Timber Construction Washer, Countersunk Head Washer for CLT
Technical Specifications
- Internal diameter (d): 8.5 mm
- Insertion diameter (d1): 40 mm
- Outer diameter (d2): 40 mm
- Diameter of hole: 40 mm
- Effective length (n): 15 mm
- Height (h): 16 mm
- Countersink diameter (D): 15 mm
- Screw-in angle: 30 Degree
- Countersink angle (α): 90 Degree
- Material: Steel
- Surface: Zinc plated
- Product weight (per item): 69 g
- Suitable for screw: ASSY 4 countersunk head diameter 8 mm, ASSYplus VG countersunk head diameter 8 mm, ASSY 3.0 countersunk head diameter 8 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 16mm x 40mm x 40mm
- Weight: 0.069 kg
Key Features
- Simple, fast, safe and powerful CLT-CLT connection with gap-free assembly.
- Extensive pre-production of cross laminated timber elements in the manufacturing plant.
- Quick and easy assembly of the 30° CLT angled washer through a simple 40-mm round hole bore during element joining in cross-laminated timber (CLT), laminated veneer lumber (LVL) or solid wood.
- Increase of the pre-production level through factory pre-assembly.
- Light press fit of the angled washer 30° CLT in the drilled hole ensures a tight fit during transport.
- Increased planning and execution reliability with predefined factory positioning specification and 30° screw guide.
- Gap-free joining of elements by using ASSY partial-thread screws dia. 8 mm with countersunk head.
- Steel, blue passivated (A3K).
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with timber construction and CLT assembly to ensure compliance with structural specifications and safety standards.
Applications
- Element construction
- Ceiling
- Timber construction
- Structural woodwork
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Supports sustainable timber construction by enabling efficient and precise assembly of cross laminated timber elements.
- Facilitates factory pre-assembly reducing onsite waste and construction time.
Warranty Information
Warranty information not specified; refer to Wurth standard product warranty terms.
Available Now
The Wurth Angled Washer 30° CLT for ASSY Screws with Countersunk Head is available for immediate purchase, ideal for timber construction and structural woodwork applications.
