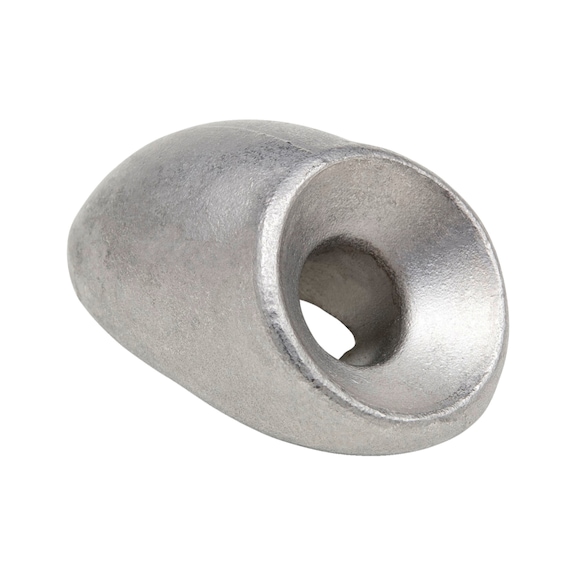

Angled Washer 45° A2 Oval Hole | Stainless Steel | Quick Mounting | @Pack of 25 | by Wurth
Angled Washer 45° A2 Oval Hole is designed for optimal metal/wood connections, featuring quick mounting and high fitting accuracy. Ideal for timber construction and structural woodwork, this washer ensures a clean appearance and prevents screw head pull-through, making it perfect for outdoor applications exposed to the elements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angled Washer 45° A2 Oval Hole | Stainless Steel | Quick Mounting | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 457700493
Alternatively Known As: 45 Degree Angled Washer, Stainless Steel Angled Washer, Oval Hole Washer, Metal Wood Connection Washer

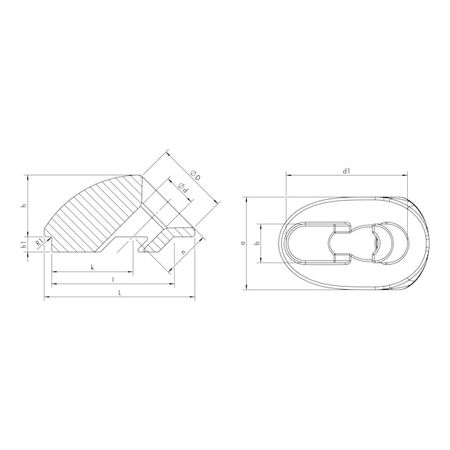

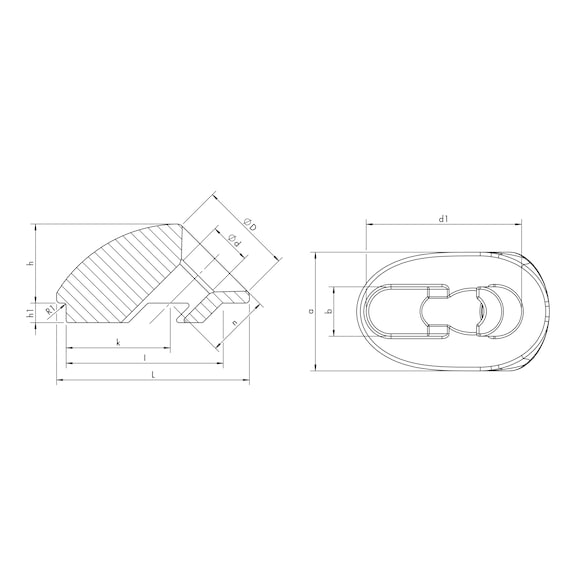

Technical Specifications
- Internal diameter (d): 6.5 mm
- Elongated hole length/width: 23 x 7 mm
- Effective length (n): 10.7 mm
- Insertion length (l): 22.7 mm
- Length (L): 29.5 mm
- Height (h): 13.5 mm
- Distance between centre of hole and edge (k): 14.5 mm
- Insertion depth (h1): 2.7 mm
- Internal width (b): 6.9 mm
- Width (a): 17 mm
- Countersink diameter (D): 14.5 mm
- Screw-in angle: 45 Degree
- Countersink angle (α): 90 Degree
- Material: Stainless steel A2
- Surface: Plain
- Product weight (per item): 30 g
- Min./max. material thickness: 3-10 mm
- Suitable for screw: ASSY 4 A2 countersunk head diameter 6 mm, ASSY 3.0 A2 countersunk head diameter 6 mm
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 13.5mm x 29.5mm x 17mm
- Weight: 0.03 kg
Key Features
- Optimum transfer of tensile stresses for metal/wood connections with ASSY 4 or ASSY 3.0 stainless steel countersunk head screws
- High fitting accuracy and precise 45° specification for screwing ASSY 4 or ASSY 3.0 stainless steel countersunk head screws
- No pulling through of the screw head when using thin sheet metals
- Quick and easy mounting through a simple oval hole in the metal plate
- Clean appearance of the finished screw connection
- Suitable for utilisation class 3 and outdoor areas exposed to the elements
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct fitting and compliance with structural requirements.
Applications

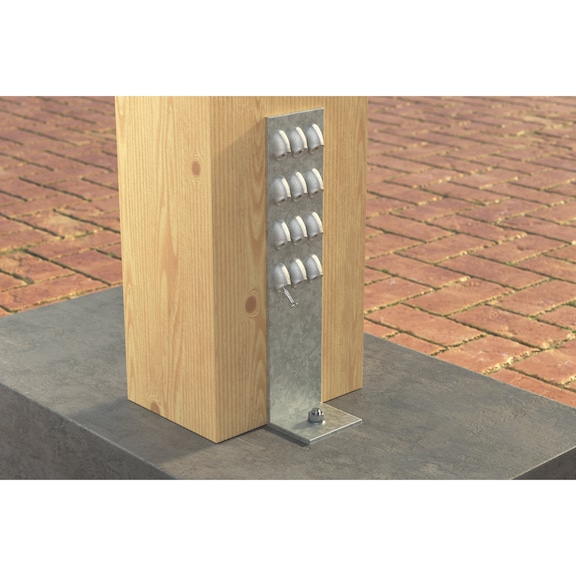

- Timber construction
- Structural woodwork
- Metal wood connections
- Outdoor areas exposed to the elements
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel A2 which is durable and corrosion resistant, reducing replacement frequency and waste
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Angled Washer 45° A2 Oval Hole 25 PCS is available for immediate purchase, ideal for timber construction, structural woodwork, and metal wood connections.
