Angled Washer 45° Oval Hole | Zinc Plated | High Fitting Accuracy | Quick Mounting | @Pack of 25 | by Wurth

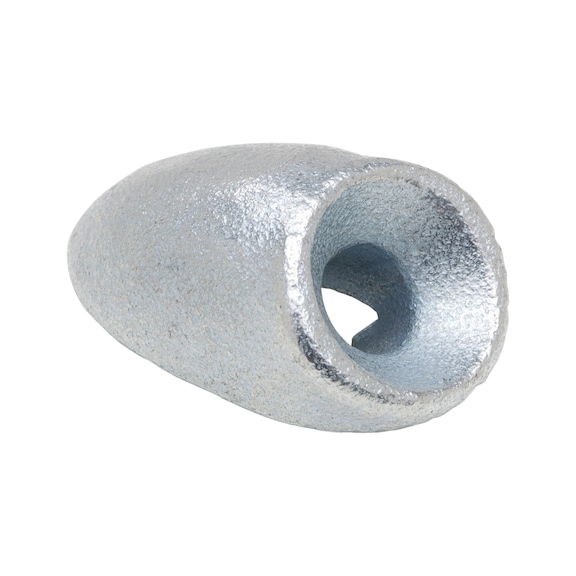

Angled Washer 45° Oval Hole is designed for optimal metal and wood connections, featuring a zinc-plated surface for durability and high fitting accuracy. Ideal for timber construction and structural woodwork, this washer ensures a clean appearance and quick mounting through a simple oval hole, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angled Washer 45° Oval Hole | Zinc Plated | High Fitting Accuracy | Quick Mounting | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 457700483
Alternatively Known As: 45 Degree Angled Washer, Oval Hole Washer, ASSY Countersunk Washer, Metal Wood Connection Washer
Technical Specifications

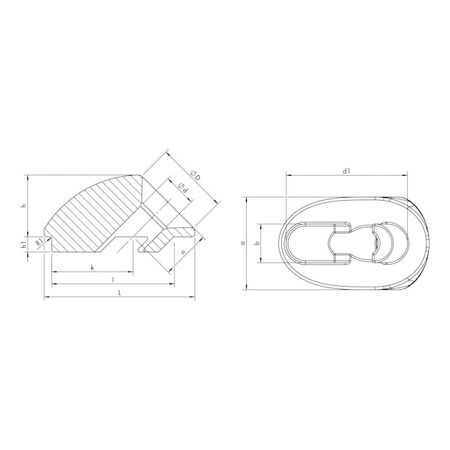

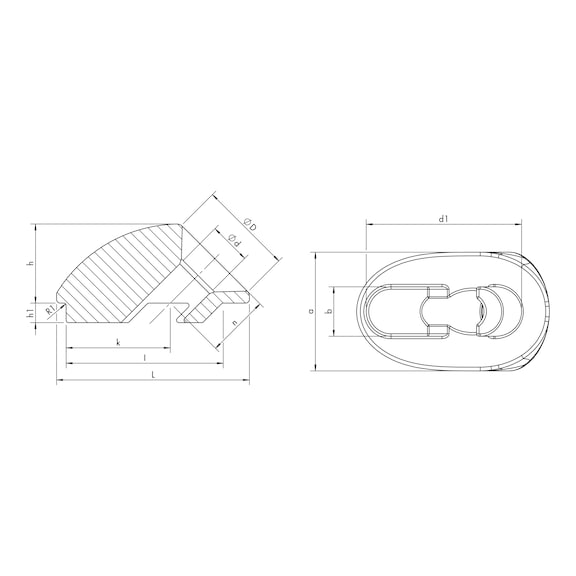

- Internal diameter (d): 6.5 mm
- Elongated hole length/width: 23 x 7 mm
- Effective length (n): 10.7 mm
- Insertion length (l): 22.7 mm
- Length (L): 29.5 mm
- Height (h): 13.5 mm
- Distance between centre of hole and edge (k): 14.5 mm
- Insertion depth (h1): 2.7 mm
- Internal width (b): 6.9 mm
- Width (a): 17 mm
- Countersink diameter (D): 14.5 mm
- Screw-in angle: 45 Degree
- Countersink angle (α): 90 Degree
- Material: Cast steel
- Surface: Zinc plated
- Product weight (per item): 25 g
- Min./max. material thickness: 3-10 mm
- Suitable for screws: ASSY 3.0 countersunk head diameter 6 mm, ASSYplus VG countersunk head diameter 6 mm, ASSY 4 countersunk head diameter 6 mm
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 13.5mm x 29.5mm x 17mm
- Weight: 0.025 kg
Key Features

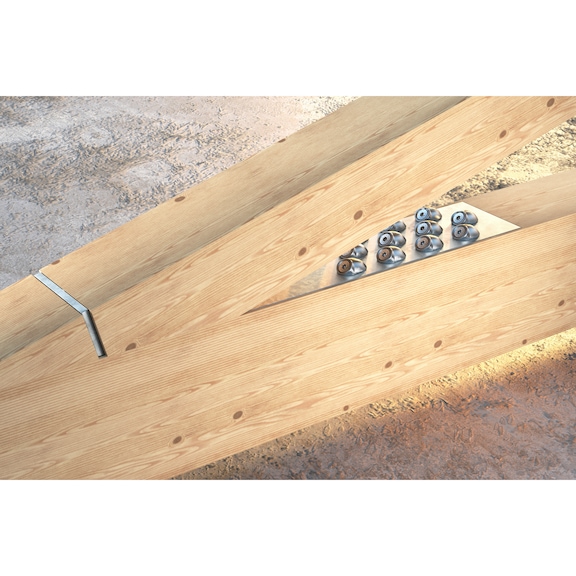

- Optimum transfer of tensile force in metal/wood connections with ASSY countersunk head screws
- High fitting accuracy and precise 45° specification for screwing the ASSYplus FT 4 screws
- Screw head does not pull through when using thin-walled metal tabs
- Quick and easy mounting of the angled washer through a simple oval hole in the metal plate
- Clean appearance of the finished screw connection
- Application in utilisation classes 1 and 2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper fitting and compliance with structural requirements.
Applications
- Metal wood connections
- Timber construction
- Structural woodwork
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plated surface extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Angled Washer 45° Oval Hole 25 PCS is available for immediate purchase, ideal for metal and wood structural connections in construction and timber work.
