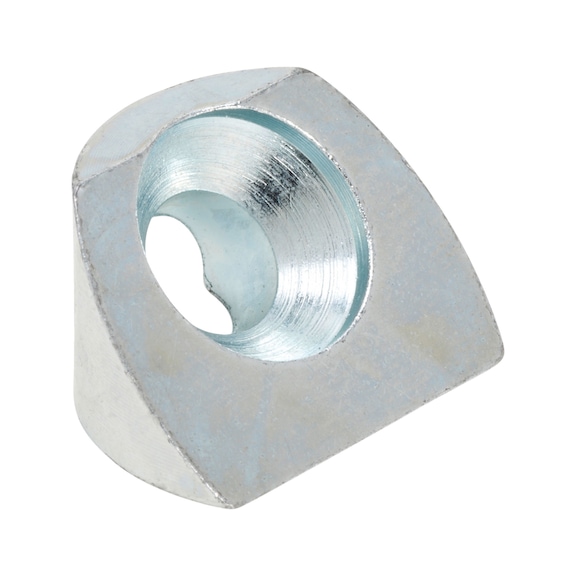

Angled Washer 45° for Hardwood | Zinc Plated Steel | High Tensile Force Resistance | @Pack of 25 | by Wurth
Angled Washer 45° for Hardwood is designed to transfer high tensile forces, making it ideal for structural woodwork and screw connections. Crafted from zinc plated steel, it offers excellent corrosion resistance and is compatible with ASSY countersunk head screws. Perfect for professionals seeking reliable and durable fastening solutions in wood applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angled Washer 45° for Hardwood | Zinc Plated Steel | High Tensile Force Resistance | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 457700468
Alternatively Known As: 45 Degree Angled Washer for Hardwood, Wood Connection Washer, ASSY Countersunk Head Washer
Technical Specifications
- Internal diameter (d): 8.5 mm
- Insertion diameter (d1): 25 mm
- Outer diameter (d2): 25 mm
- Diameter of hole: 25 mm
- Effective length (n): 8.25 mm
- Height (h): 14 mm
- Insertion depth (h1): 14 mm
- Countersink diameter (D): 15 mm
- Screw-in angle: 45 Degree
- Countersink angle (α): 90 Degree
- Material: Steel
- Surface: Zinc plated
- Product weight (per item): 15.706 g
- Suitable for screw: ASSY 4 countersunk head diameter 8 mm, ASSYplus VG countersunk head diameter 8 mm, ASSY 3.0 countersunk head diameter 8 mm
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 14mm x 25mm x 25mm
- Weight: 0.0157 kg
Key Features
- Transfers high tensile forces with high head pull-through resistance
- Designed for wood/wood connections with ASSY countersunk head screws
- Quick and easy mounting via a simple round hole
- Suitable for use classes 1 and 2
- Flat, level wood end installation
- Blue coated steel (A3K) for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with structural woodwork and fastening systems to ensure compliance with structural standards.
Applications
- Structural woodwork
- Screw connections in wood/wood applications
- Use with BauBuche, LVL, and cross laminated timber (CLT)
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plated steel surface extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Angled Washer 45° for Hardwood is available for immediate purchase, ideal for structural woodwork and screw connection applications.
