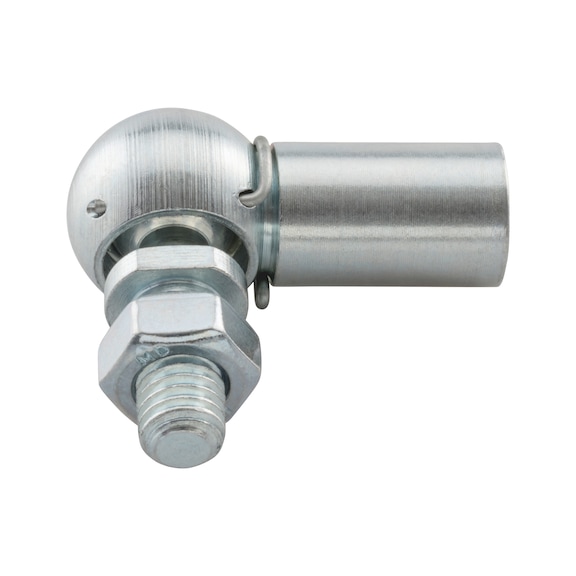

Angular Joint Shape CS with Retaining Clip DIN 71802 | Steel Construction | Zinc-Plated & RoHS Compliant | @PCS by Wurth
The Angular Joint Shape CS with Retaining Clip DIN 71802 is designed for secure mechanical linkages in industrial and automotive applications. Made from durable steel and zinc-plated for corrosion resistance, this joint features a retaining circlip for added security. Ideal for qualified technicians, it ensures reliable performance in various engineering setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angular Joint Shape CS with Retaining Clip DIN 71802 | Steel Construction | Zinc-Plated & RoHS Compliant | @PCS by Wurth
Brand: Wurth
SKU: 26850510
Alternatively Known As: Ball joint with retaining clip, Angular ball joint DIN 71802, Zinc-plated ball joint CS form
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length from centre of ball to end of ball socket (a1): 22 mm
- Length from centre of ball to tappet collar (l1): 9 mm
- Length of tenon from collar (l2): 10.2 mm
- Form: CS
- Material: Steel
- Surface: Zinc plated
- Design: With circlip
- Thread type: Metric thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 22mm x 10mm
- Weight: 0.05 kg
Key Features
- Ball joint with wrench flat and hex nut for secure fastening
- Steel construction with zinc plating for corrosion resistance
- Includes retaining circlip for secure assembly
- Complies with DIN 71802 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fit and function.
Applications
- Mechanical linkages requiring angular joint connections
- Industrial machinery assemblies
- Automotive and engineering applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Angular Joint Shape CS with retaining clip DIN 71802 is available for immediate purchase, ideal for industrial and mechanical assembly applications.
