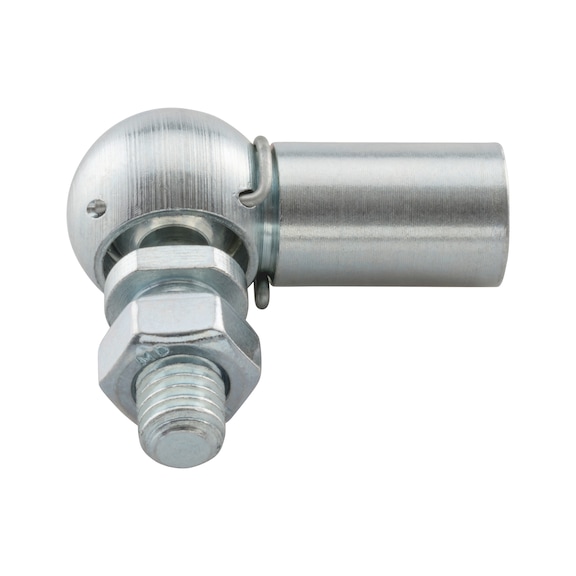

Angular Joint Shape CS with Retaining Clip DIN 71802 | Zinc-Plated Steel | Corrosion Resistant | by Wurth
The Angular Joint Shape CS with retaining clip DIN 71802 is designed for secure mechanical assemblies, featuring a durable zinc-plated steel construction with blue passivation for enhanced corrosion resistance. Ideal for industrial machinery and automotive applications, this joint ensures reliable performance with its included retaining circlip and compliance with DIN standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angular Joint Shape CS with Retaining Clip DIN 71802 | Zinc-Plated Steel | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 26850612
Alternatively Known As: Ball Joint CS with Circlip, Angular Ball Joint DIN 71802, Zinc Plated Ball Joint
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length from centre of ball to end of ball socket (a1): 25 mm
- Length from centre of ball to tappet collar (l1): 11 mm
- Length of tenon from collar (l2): 12.5 mm
- Form: CS
- Material: Steel
- Surface: Zinc plated with blue passivation
- Design: With circlip
- Thread type: Metric thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 25mm x 25mm x 12mm
- Weight: 0.05 kg
Key Features
- Ball joint with wrench flat and hex nut for secure fastening
- Zinc-plated steel construction with blue passivation for corrosion resistance
- Includes retaining circlip for secure assembly
- Complies with DIN 71802 standard
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with mechanical assembly and safety standards.
Applications
- Mechanical assemblies requiring angular joint connections
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Angular Joint Shape CS with retaining clip is available for immediate purchase, ideal for industrial and mechanical applications requiring durable ball joints.
