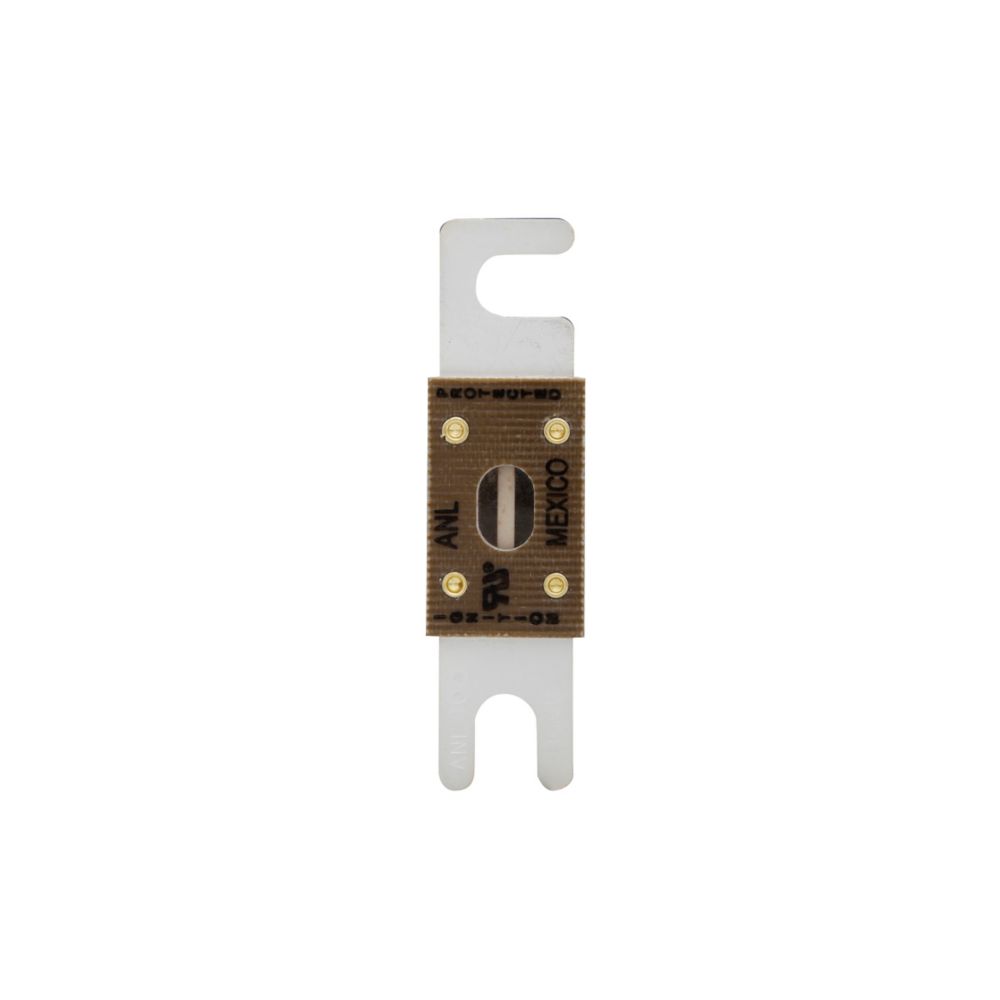

ANL Current Limiter Fuse 125 Amp | 6 kAIC Interrupt Rating | Blade End Connection | by Eaton
The ANL Current Limiter Fuse 125 Amp is designed for reliable protection in automotive, marine, and industrial electrical systems. With a robust 6 kAIC interrupt rating at 32 Vac and a compact blade end connection, this fuse ensures safety and efficiency in DC circuits. Ideal for battery protection and compliance with AS/NZS 3000 standards, it’s a must-have for any qualified electrician's toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ANL Current Limiter Fuse 125 Amp | 6 kAIC Interrupt Rating | Blade End Connection | by Eaton
Brand: Eaton
SKU: ANL-125
Alternatively Known As: ANL Fuse 125A, ANL-125 Circuit Limiter, Eaton ANL Fuse, Bussmann ANL Fuse
Technical Specifications
- Amperage Rating: 125 A
- Interrupt Rating: 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 32 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Fuse Indicator: Non-indicating
- Small footprint for space-saving installation
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.14 kg
Key Features
- 125 Ampere current rating
- Interrupt rating of 6 kAIC at 32 Vac and 2.7 kAIC at 80 Vdc
- Blade end to blade end connection
- Non-indicating fuse type
- Small footprint design for compact installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Automotive and marine electrical systems
- Battery protection in DC circuits
- Industrial and commercial electrical protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing.
Warranty Information
No warranty applicable.
Available Now
The Eaton Bussmann ANL Current Limiter Fuse 125 Amp (ANL-125) is available for immediate purchase, ideal for automotive, marine, and industrial electrical protection applications.
