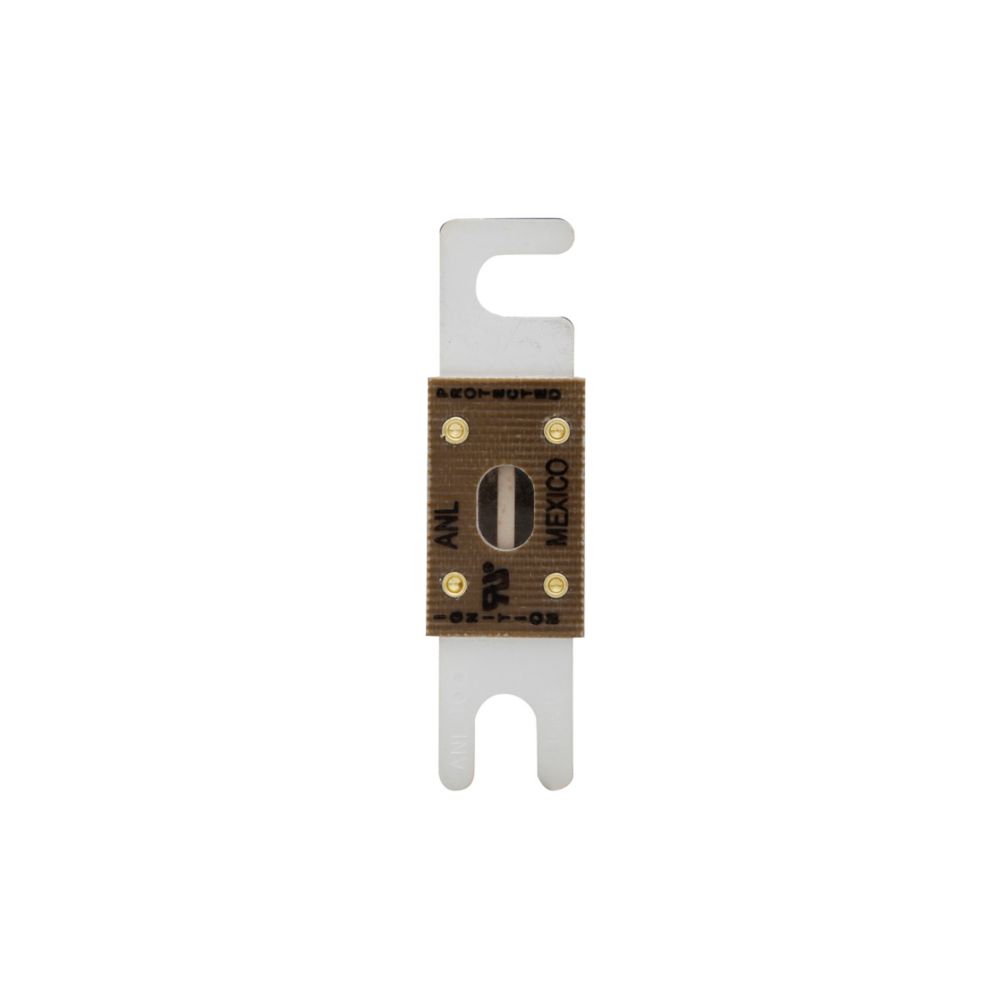

ANL Current Limiter Fuse 300 Amp | 2.7 kAIC Interrupt Rating | Blade End Connection | by Eaton
The ANL Current Limiter Fuse 300 Amp is designed for reliable protection in automotive, marine, and industrial electrical systems. With a robust 2.7 kAIC interrupt rating at 80 Vdc and a blade end connection type, this fuse ensures safety and efficiency in power distribution. Ideal for battery protection in DC circuits, it’s a must-have for qualified electricians looking to enhance system reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ANL Current Limiter Fuse 300 Amp | 2.7 kAIC Interrupt Rating | Blade End Connection | by Eaton
Brand: Eaton
SKU: ANL-300
Alternatively Known As: ANL Fuse 300A, ANL Current Limiter Fuse 300 Amp, Bussmann ANL-300 Fuse
Technical Specifications
- Amperage Rating: 300 A
- Interrupt Rating: 2.7 kAIC at 80 Vdc, 6 kAIC at 32 Vac
- Voltage Rating: 32 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.14 kg
Key Features
- 300 Ampere current rating
- Interrupt rating of 2.7 kAIC at 80 Vdc and 6 kAIC at 32 Vac
- Blade end to blade end connection
- Stud mounting method
- Non-indicating fuse type
- Compact small footprint design
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and safety compliance.
Applications
- Automotive and marine electrical systems
- Battery protection in DC circuits
- Industrial machinery and equipment
- Power distribution protection in vehicles and boats
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing.
Warranty Information
No warranty applicable.
Available Now
The Eaton Bussmann ANL-300 Current Limiter Fuse 300 Amp is available for immediate purchase, ideal for automotive, marine, and industrial electrical protection applications.
