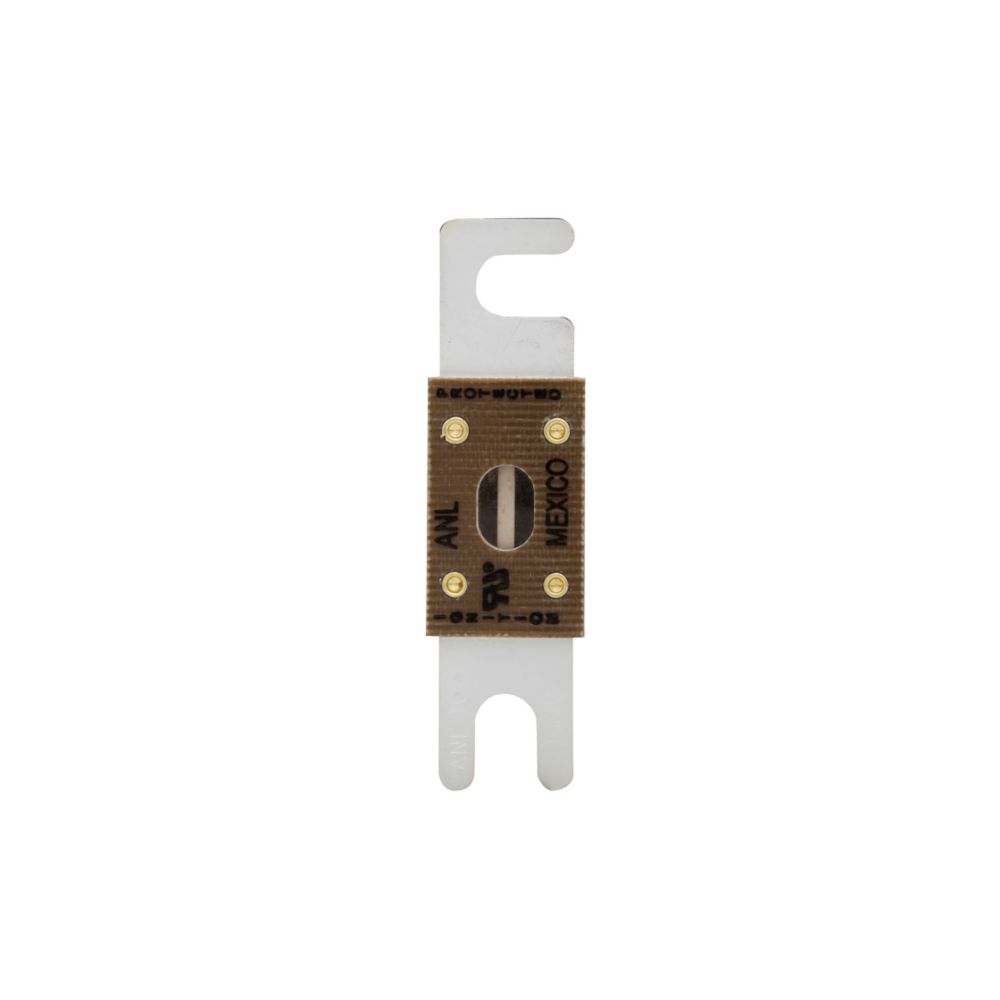

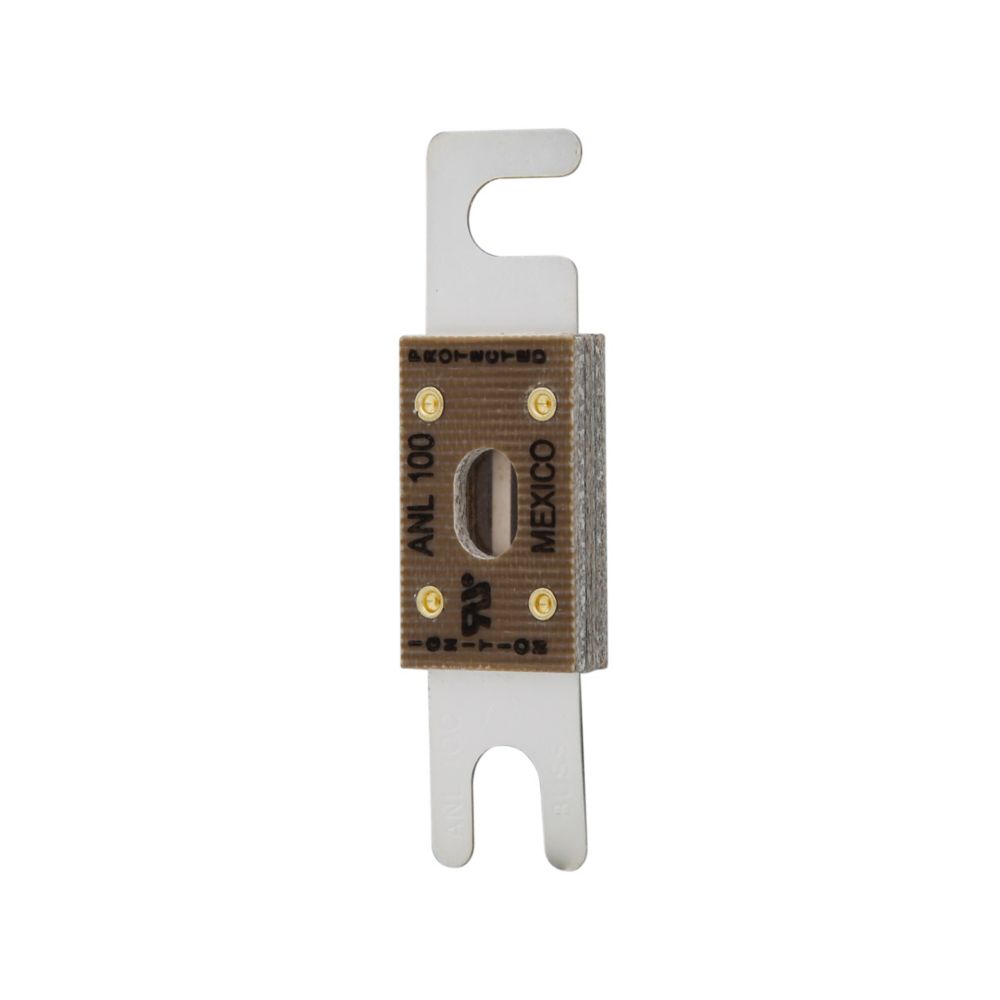

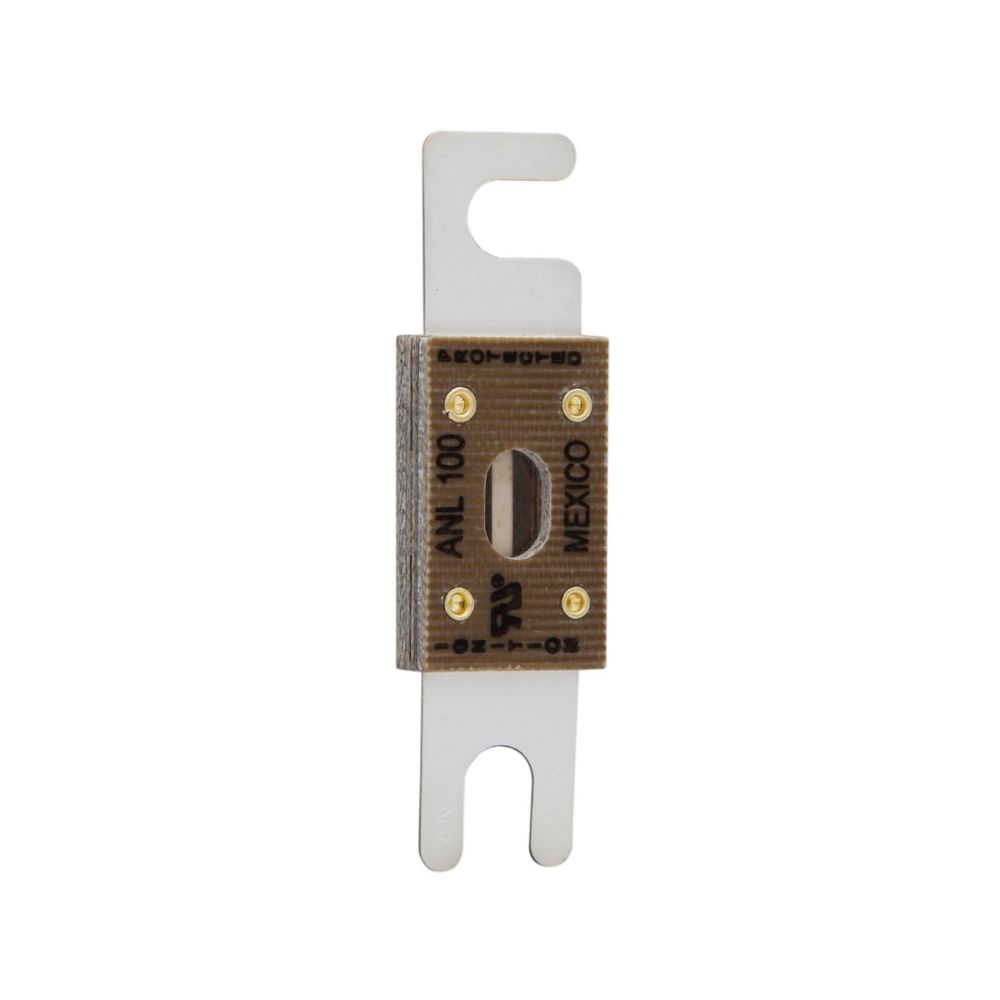

ANL Current Limiter Fuse 350 Amp | 235 Amp Rating | 6 kAIC Interrupt Rating | Blade End Connection | by Eaton
The ANL Current Limiter Fuse 350 Amp is designed for high current protection in automotive, marine, and industrial applications. With a 235 Ampere rating and a 6 kAIC interrupt rating, it ensures reliable circuit protection. Its compact design and blade end connection make installation easy and secure, making it ideal for battery protection in DC circuits and renewable energy systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ANL Current Limiter Fuse 350 Amp | 235 Amp Rating | 6 kAIC Interrupt Rating | Blade End Connection | by Eaton
Brand: Eaton
SKU: ANL-350
Alternatively Known As: ANL Fuse 350 Amp, ANL-350 Circuit Limiter, Bussmann ANL Fuse, Eaton ANL Fuse
Technical Specifications
- Amperage Rating: 235 A
- Interrupt Rating: 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 32 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Small footprint design for space-saving installation
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.14 kg
Key Features
- 235 Ampere rating for high current protection
- Interrupt rating of 6 kAIC at 32 Vac and 2.7 kAIC at 80 Vdc
- Blade end to blade end connection for easy installation
- Stud mounting method for secure attachment
- Non-indicating fuse type
- Compact small footprint design
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and safety compliance.
Applications
- Automotive and marine electrical systems
- Battery protection in DC circuits
- Industrial power distribution
- Renewable energy systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Helps prevent electrical fires and damage by reliable circuit protection
Warranty Information
No warranty applicable.
Available Now
The Eaton Bussmann ANL Current Limiter Fuse 350 Amp ANL-350 is available for immediate purchase, ideal for automotive, marine, and industrial electrical protection applications.
