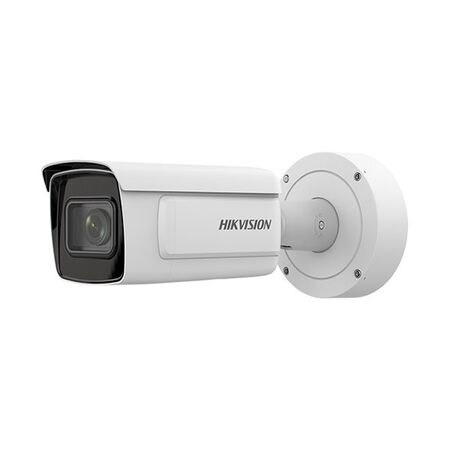

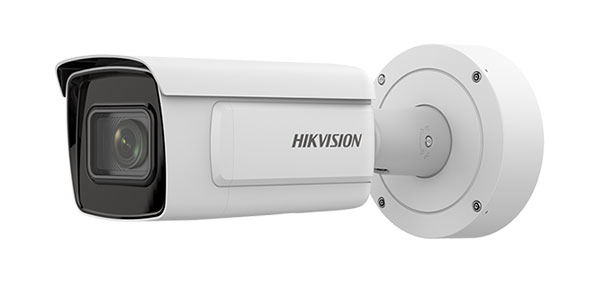

ANPR Camera 4MP 2.8-12mm Hikvision
Hikvision ANPR camera features 4MP resolution and a 2.8-12mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP Number Plate Recognition Camera, ANPR Camera, License Plate Recognition Camera, Intelligent Entrance Video Unit
Technical Specifications
- Model: DS-TCG405-E(S)
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 2688 × 1520 pixels
- Lens: 2.8–12 mm motorised varifocal lens
- ANPR Functions: Multi-frame licence plate recognition, vehicle type, colour and brand recognition
- Lighting: Integrated white light and infrared LEDs
- Storage: Integrated TF/microSD card slot, up to 1 TB
- Network Interface: 1 × RJ45 Ethernet port
- Power Supply: PoE 802.3af or 12 VDC, variant dependent
- Protection Rating: IP67 weather resistance
- Vandal Resistance: IK10
- Operating Temperature: -30°C to 70°C
- Maximum Power Consumption: Approximately 22 W
- Vehicle Barrier Control: Relay output supported
- Dimensions (H x L x W): 415mm x 145mm x 145mm
- Weight: 3.25 kg
Key Features
- 4MP imaging with real-time 2688 × 1520 resolution
- 2.8–12 mm motorised varifocal lens for adjustable viewing angles
- Automatic number plate recognition for vehicle access and traffic applications
- Recognises vehicle type, colour and brand in supported configurations
- Integrated white light and infrared illumination
- Supports barrier control through relay output
- Supports loop or radar triggering
- Local recording through an integrated TF/microSD card slot
- PoE connectivity for simplified installation
- IP67 and IK10 protection for outdoor installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or low-voltage technician. Configure network, power, triggering and barrier-control connections in accordance with the manufacturer’s documentation and applicable Australian requirements.
Applications
- Vehicle entrance and exit control
- Car parks and commercial parking facilities
- Gated residential communities
- Industrial and commercial site access control
- Roadside vehicle monitoring
- Licence plate recognition and traffic enforcement applications
Standards & Compliance
- Applicable CCTV framework: AS/NZS 62676.1.1:2020 for video surveillance system requirements
- Applicable camera performance framework: AS/NZS 62676.5:2020 for data specifications and image quality performance
- Installation and electrical work should follow applicable requirements of AS/NZS 3000:2018 where relevant
Environmental Benefits
- PoE connectivity can reduce additional power cabling and simplify system infrastructure
- IP67 and IK10 protection support longer service life in outdoor installations, reducing replacement waste
- Local recording capability can reduce reliance on additional recording hardware in suitable installations
- RoHS-related environmental compliance may apply to the supplied regional variant; verify the product declaration for the exact model
Warranty Information
Hikvision warranty coverage varies by product series, region and sales channel. Hikvision Australia publishes extended five-year coverage for selected premium project-oriented product lines; confirm the applicable warranty for the exact ANPR camera and authorised Australian supply channel before purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to regional model and stock availability.
