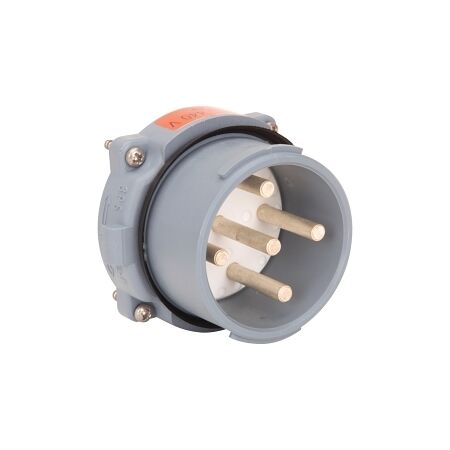

Appliance Inlet 30A 440VAC IP66 3P+N+E AC23 16A Proconect
Proconect 3PS appliance inlet rated 30A 440VV AC, 3P+N+E, IP66. Interlocked isolating connector for industrial power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Amperage: 30 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 1.6 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 62.5mm x 62.5mm x 62.5mm
- Weight: 0.14 kg
Key Features
- 3P+N+E configuration for reliable power connection.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power distribution in large facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS16 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current connections.
