Appliance Inlet 3P+E 90A | 440V AC | IP66 Rated | Durable Polyamide by NHP
Appliance inlet with 90A high current capacity and IP66 rating—ideal for industrial and commercial power distribution. Built for durability with polyamide and stainless steel construction, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

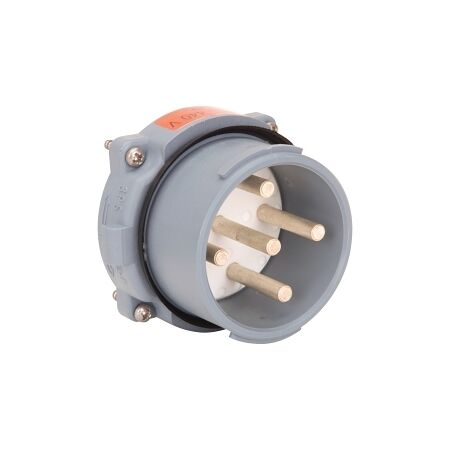

Product Name/Title: PROCONECT 3PS63 Appliance Inlet, 3P+E, 90A (AC23 63A) 440V AC
Brand: NHP
SKU: 3PS6A30E01
Alternatively Known As: 90A Appliance Inlet, 3P+E Inlet, High Current Inlet
Technical Specifications
- Amperage: 90 A
- Voltage: 380-440 V
- Contact Configuration: 3P+E
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 4 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 88mm x 100mm
- Weight: 0.39 kg
Key Features
- High current capacity of 90A for demanding applications.
- IP66 rated for protection against dust and water ingress.
- Constructed with durable polyamide and stainless steel materials.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power distribution in large facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS63 Appliance Inlet is available now for immediate purchase, ideal for industrial and commercial power distribution.
