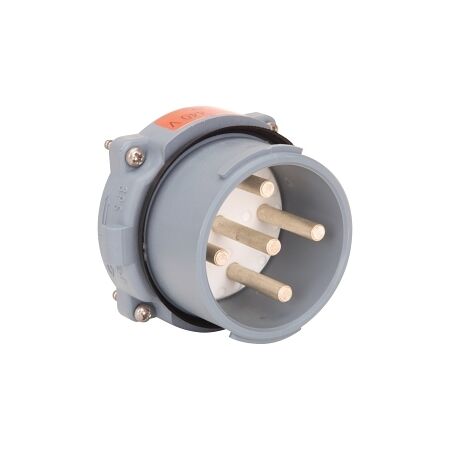

Appliance Inlet 3P+N+E | 90A 440V | IP66 Rated | Polyamide by NHP
Appliance inlet with 3P+N+E configuration and 90A 440V capacity—ideal for industrial and commercial power distribution. Built for durability with IP66 protection and polyamide construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROCONECT 3PS63 Appliance Inlet, 3P+N+E, 90A (AC23 63A) 440V AC
Brand: NHP
SKU: 3PS6A3NE01
Alternatively Known As: 3P+N+E Inlet, High Current Appliance Inlet, 90A Inlet
Technical Specifications
- Amperage: 90 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless Steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 4 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 88mm x 88mm x 88mm
- Weight: 0.39 kg
Key Features
- 3P+N+E contact configuration for versatile connections.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power distribution in large facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS63 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current connections.
