Appliance Inlet 3P+N+E+2p | 30A 440V AC | IP66 Rated | Polyamide by NHP
Appliance inlet with 3P+N+E+2p configuration and 30A 440V AC—ideal for industrial and commercial power distribution. Built for durability with IP66 protection and polyamide construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

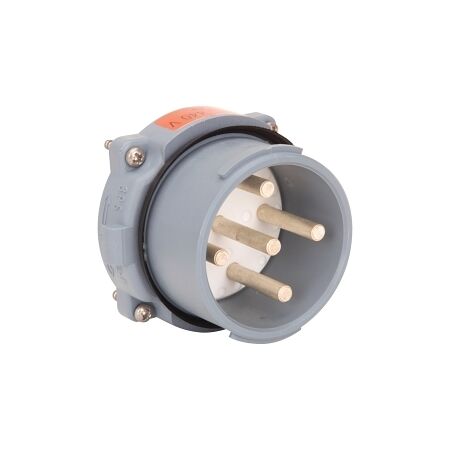

Product Name/Title: PROCONECT 3PS16 Appliance Inlet, 3P+N+E+2p, 30A (AC23 16A) 440V AC
Brand: NHP
SKU: 3PS16A3NE01P
Alternatively Known As: 3P+N+E Inlet, 30A Appliance Inlet, High Current Inlet
Technical Specifications
- Amperage: 30 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E+2P
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless Steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 1.6 Nm
- Operating Temperature: -30 to 60 °C
- Dimensions (H x L x W): 62.5mm x 62.5mm x 62.5mm
- Weight: 0.14 kg
Key Features
- 3P+N+E+2P contact configuration for versatile connections.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power distribution in large facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS16 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current connections.
