Appliance Inlet 3P+N+E+2p | 50A 440V | IP66 Rated | Durable Polyamide by NHP
Appliance inlet with 50A current rating and 440V voltage—ideal for industrial and commercial power supply. Built for high power applications, with IP66 protection and durable polyamide construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

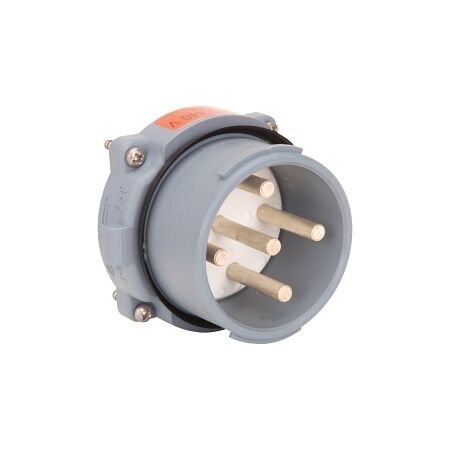

Product Name/Title: PROCONECT 3PS32 Appliance Inlet, 3P+N+E+2p, 50A (AC23 32A) 440V AC
Brand: NHP
SKU: 3PS32A3NE01P
Alternatively Known As: 3P+N+E Inlet, 50A Appliance Inlet, High Current Inlet
Technical Specifications
- Amperage: 50 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E+2P
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 2.72 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 0mm x 70.5mm x 0mm
- Weight: 0.23 kg
Key Features
- 50A current rating for high power applications.
- IP66 rated for protection against dust and water ingress.
- Constructed with durable polyamide and stainless steel materials.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power supply for appliances and tools
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
Standard warranty applies.
Available Now
The PROCONECT 3PS32 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high power supply.
