Appliance Inlet 5 Round PIN | 50A 500V | IP66 Grey by Clipsal
Appliance inlet with 50A current and 500V voltage—ideal for industrial and commercial power supply. Built for durability, with IP66 rating for dust and water protection.
Sign in
Please login to continue to your account.

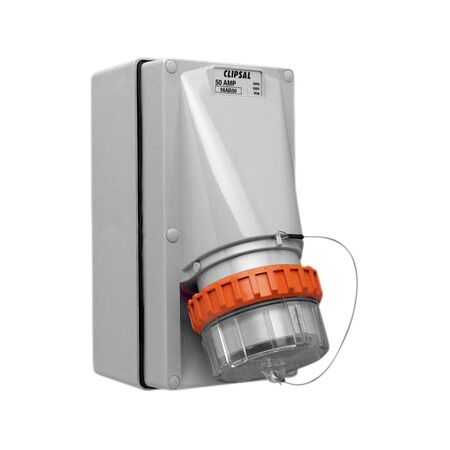

Product Name/Title: Clipsal - 56 Series, Appliance Inlet, 5 Round PIN, 50A, 500V, IP66 - Grey
Brand: Clipsal
SKU: 56AI550-GY
Alternatively Known As: Clipsal 56 Series Inlet, 50A Appliance Inlet, Industrial Power Inlet
- Rated current: 50A
- Rated operational voltage: 500V 50/60Hz
- Mounting mode: Surface mounted
- Connections: Screw terminal 10-16 mm² rigid or stranded cable
- Material: Polycarbonate cover, brass screws
- Poles description: 3P + N + E
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 204mm x 165mm x 101mm
- Weight: 1.02 kg
- IP66 rated for protection against dust and water ingress.
- Rated current of 50A and operational voltage of 500V.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial utilities
- Complies with AS/NZS 60320.1 and EN 60309-2 for safety and performance.
- Compliant with RoHS directives, ensuring reduced environmental impact.
Standard warranty applies.
The Clipsal 56 Series Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications.
