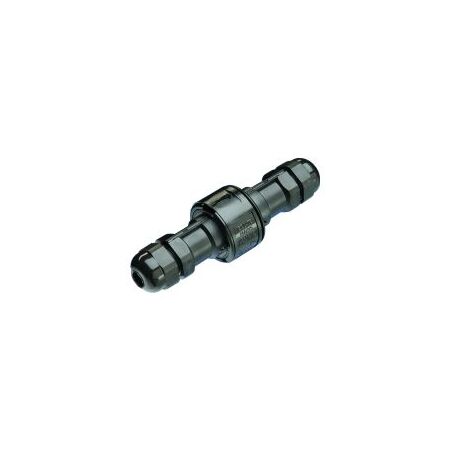

Aquasafe 3 Pole Inline Waterproof Plug Socket 12-16mm Adaptaflex
Aquasafe 3 pole inline plug and socket features 12-16mm cable range, glass filled nylon housing, nitrile seal and -25 to +80C rating. Ideal for waterproof joins.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aquasafe Inline Waterproof Connector, 3-Pole Inline Cable Coupler, IP68 Waterproof Plug and Socket
Technical Specifications
- Product Type: Inline waterproof connector assembly
- Connector Configuration: 3-pole plug and socket
- Cable Diameter Range: 12–16 mm
- Rated Current: 16 A
- Rated Voltage: 250 V
- Ingress Protection: IP68, up to 2 bar for 30 minutes
- Connector Material: Polycarbonate
- Outer Housing: Glass-filled nylon
- Seal Material: Nitrile rubber
- Termination: Screw terminals
- Terminal Capacity: Up to 4 mm²
- Temperature Range: -25°C to +80°C for static applications
- Flammability Rating: UL94 V-2
- Compliance: IEC 61984
- Environmental Compliance: Halogen-free, RoHS3 compliant and REACH compliant
- Colour: Black
- Submersibility: Not intended for permanent submersion
- Dimensions (H x L x W): 37mm x 135mm x 37mm
- Weight: 0.1 kg
Key Features
- Provides a waterproof inline cable connection for temporary or permanent electrical joins
- Suitable for 12–16 mm cable diameters
- IP68 protection tested to 2 bar for 30 minutes
- 3-pole plug and socket arrangement for compact cable-mounted connections
- Durable glass-filled nylon outer housing with nitrile rubber sealing
- Quick-connect and release design with snap-lock collar
- Halogen-free construction
- Suitable for outdoor lighting, heating equipment and water pump connections
Professional Installation Requirements
- Electrical termination should be performed by a licensed electrician in accordance with applicable Australian wiring rules. Ensure the cable diameter, terminal capacity, voltage, current rating and sealing arrangement are suitable for the installation. The connector is not intended for permanent submersion.
Applications
- Outdoor lighting connections
- Heating equipment connections
- Water pump wiring
- Industrial equipment and machinery cabling
- Temporary power connections
- Outdoor and damp-area cable joins
Environmental Benefits
- Halogen-free construction helps reduce the release of halogenated substances during disposal or fire exposure
- RoHS3 compliance restricts specified hazardous substances in the electrical assembly
- REACH compliance supports control of substances of very high concern
- Durable housing and sealing materials can reduce replacement frequency and associated waste
Warranty Information
A 12-month guarantee is commonly listed for this model, subject to the applicable supplier terms. Australian Consumer Law rights apply.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
