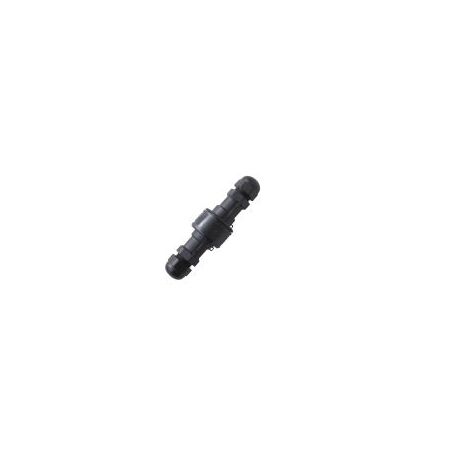

Aquasafe 3 Pole Inline Waterproof Plug Socket 5-9mm Adaptaflex
Aquasafe 3 pole inline plug and socket features 5-9mm cable range, glass filled nylon housing, nitrile seal and -25 to +80C rating. Ideal for waterproof joins.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aquasafe Inline Waterproof Connector, 185-9000 Cable Joint, IP68 Inline Cable Connector, Waterproof Plug and Socket
Technical Specifications
- Connector Type: In-line waterproof plug and socket assembly
- Number of Poles: 3
- Current Rating: 16 A
- Cable Range: 5-9 mm diameter
- Ingress Protection: IP68, up to 2 bar for 30 minutes
- Temperature Range: -25°C to +80°C
- Plug and Socket Material: Polycarbonate
- Outer Housing Material: Glass-filled nylon
- Seal Material: Nitrile rubber
- Colour: Black
- Flammability: UL94 V-2
- Environmental Compliance: RoHS3, REACH, TSCA and POPs compliant
- Connector Standard: IEC 61984
- Pack Quantity: 1
- Usage Limitation: Temporary immersion rated; not suitable for permanent submersion
- Dimensions (H x L x W): 37mm x 135mm x 37mm
- Weight: 0.1 kg
Key Features
- Provides a sealed in-line connection for three conductors
- Suitable for 5-9 mm cable diameters
- IP68 protection for outdoor and wet-location applications
- Quick-connect and release snap-lock collar
- Active latch mechanism assists secure connection and disconnection
- Halogen-free construction
- Compact design for temporary power connections
- Suitable for light and heavy industrial applications
Professional Installation Requirements
- Electrical termination and installation should be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Isolate the electrical supply before installation and verify that the cable, current rating and installation environment are suitable.
Applications
- Outdoor lighting connections
- Heating equipment wiring
- Water pump connections
- Temporary power connections
- Light industrial equipment
- Heavy industrial equipment
- Outdoor electrical enclosures and machinery
- Water-resistant cable joins
Standards & Compliance
- AS/NZS 3000:2018 installation and wiring requirements apply when the connector is incorporated into an Australian electrical installation
- Product connector design is specified to IEC 61984
Environmental Benefits
- Halogen-free construction helps reduce halogenated materials in the product
- RoHS3 and REACH compliance supports restriction of hazardous substances
- Durable glass-filled nylon and polycarbonate construction can extend service life and reduce replacement waste
- Reusable plug-and-socket design avoids replacing an entire cable assembly when connections are separated
Warranty Information
12-month warranty against defects in materials and workmanship, subject to applicable ABB Australia terms and Australian Consumer Law.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
