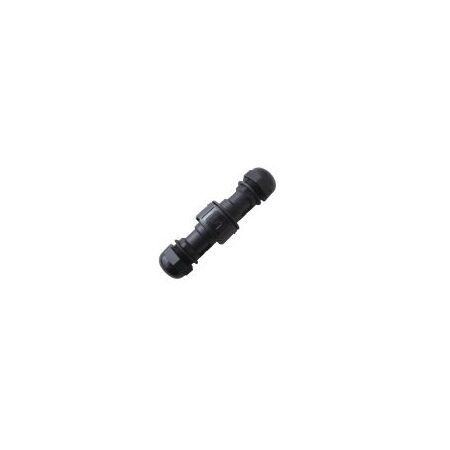

Aquasafe 3 Pole Inline Waterproof Plug Socket 8-13mm Adaptaflex

BRAND: CABAC
SKU: 185-9100
$98.90 List price: $131.90
+ −
30 Days Return Electricians Unlock Trade Access
Aquasafe 3 pole inline plug and socket features 8-13mm cable range, glass filled nylon housing, nitrile seal and -25 to +80C rating. Ideal for waterproof joins.

Alternatively Known As: Aquasafe inline cable connector, IP68 waterproof cable joiner, 3-pole inline electrical connector

Technical Specifications
  • Product Range: Aquasafe
  • Connector Type: Inline plug and socket assembly
  • Number of Poles: 3
  • Cable Range: 8–13 mm diameter
  • Current Rating: 16 A
  • Voltage Rating: 250 V
  • Terminal Capacity: Up to 4 mm²
  • Termination: Screw terminals
  • Ingress Protection: IP68, up to 2 bar for 30 minutes
  • Materials: Polycarbonate connector, glass-filled nylon outer housing and nitrile rubber seal
  • Temperature Range: -25°C to +80°C for static applications
  • Flammability: UL94 V-2
  • Colour: Black
  • Halogen Free: Yes
  • Compliance: CE marking and IEC 61984
  • Submersion Limitation: Not intended for permanent submersion
  • Pack Quantity: 1
  • Dimensions (H x L x W): 37mm x 135mm x 37mm
  • Weight: 0.1 kg
Key Features
  • Provides a compact waterproof join between two power cables
  • Three-pole plug and socket configuration
  • Accepts cable diameters from 8 to 13 mm
  • IP68 protection for temporary immersion up to 2 bar for 30 minutes
  • Snap-lock collar provides quick connection and release
  • Screw termination for secure cable connection
  • Glass-filled nylon housing with nitrile rubber sealing
  • Halogen-free construction
  • Suitable for outdoor lighting, heating and water-pump connections
Professional Installation Requirements
  • Installation and cable termination should be performed by a licensed electrician or suitably qualified electrical tradesperson. Install, test and commission in accordance with the applicable wiring rules, cable requirements and manufacturer instructions. The connector is not intended for permanent submersion.
Applications
  • Outdoor lighting cable connections
  • Heating equipment power connections
  • Water pumps and garden equipment
  • Temporary power connections
  • Domestic and commercial external electrical installations
  • Cable repairs and extensions where IP68 protection is required
Standards & Compliance
  • AS/NZS 3000: Electrical installations and wiring rules relevant to the installation and use of the connector
  • AS/NZS 60529: Relevant enclosure protection classification standard for the stated IP68 ingress rating
Environmental Benefits
  • Halogen-free construction helps reduce halogen emissions in the event of fire
  • RoHS-compliant materials help limit restricted hazardous substances
  • Durable sealing and housing materials can extend service life and reduce replacement waste
  • Reusable plug and socket design can reduce the need for disposable cable-joining components
Warranty Information

Adaptaflex trading terms provide a 6-month warranty against defects in materials or workmanship, subject to the manufacturer’s conditions. Australian Consumer Law rights apply where applicable.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
