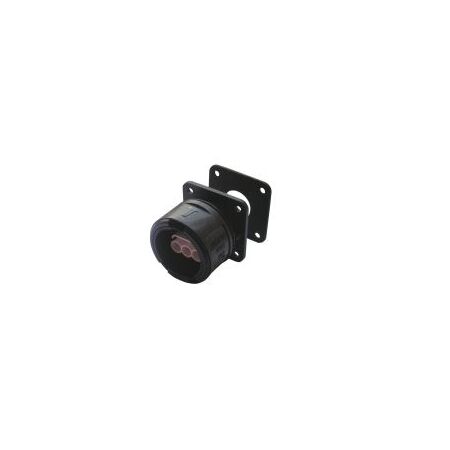

Aquasafe Bulkhead Female Housing 3 Pole Flanged Adaptaflex
Aquasafe bulkhead female housing features flanged 3 pole plug, glass filled nylon body, nitrile seal and -25 to +80C rating. Ideal for panel connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aquasafe Flanged Bulkhead Connector, 3 Pole Female Panel Connector, Waterproof Bulkhead Plug Housing
Technical Specifications
- Product Range: Aquasafe
- Connector Type: Flanged female housing with 3 pole plug
- Rated Current: 16 A
- Ingress Protection: IP68 up to 2 bar for 30 minutes
- Connector Material: Polycarbonate
- Housing Material: Glass-filled nylon
- Seal Material: Nitrile rubber
- Temperature Range: -25°C to +80°C for static applications
- Flammability Rating: UL94 V-2
- Halogen Free: Yes
- Colour: Black
- Termination: Screw termination
- Installation Type: Chassis or panel mount
- Submersibility: Not submersible
- Approval: IEC 61984
- Pack Quantity: 1
- Dimensions (H x L x W): 40mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Flanged bulkhead design for panel-mounted connections
- Three-pole plug configuration
- IP68 protection for demanding industrial environments
- Glass-filled nylon housing for mechanical durability
- Nitrile rubber seal helps protect against moisture and dust ingress
- Halogen-free construction
- Compact housing suitable for confined panel installations
- Suitable for temporary power and equipment connection applications
Professional Installation Requirements
- Electrical connection and panel installation should be performed by a suitably qualified electrician in accordance with applicable Australian wiring requirements and the equipment manufacturer's instructions.
Applications
- Electrical control panels
- Industrial machinery and equipment
- Outdoor electrical enclosures
- Temporary power connections
- Cable protection and equipment interconnection systems
- Panel-mounted power and data equipment
Environmental Benefits
- Halogen-free construction reduces the use of halogenated materials in the connector housing
- Durable glass-filled nylon construction can support a longer service life and reduce replacement waste
- Polycarbonate and nylon components may be recyclable through appropriate plastics recovery streams at end of life
Warranty Information
Covered by the Adaptaflex product-family lifetime warranty, subject to the manufacturer's terms and conditions.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
