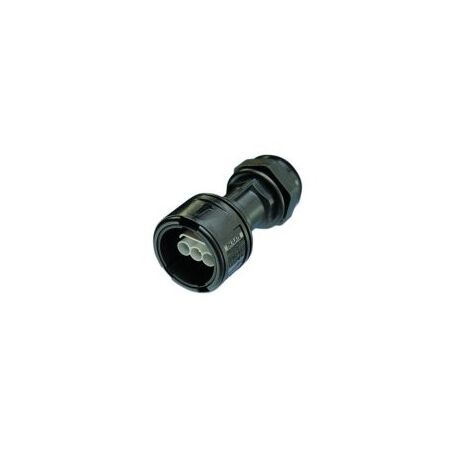

Aquasafe Inline Female Housing 3 Pole 12-16mm Black Adaptaflex
Aquasafe inline female housing features 3 pole plug, 12-16mm cable range, glass filled nylon body, nitrile seal and -25 to +80C rating. Ideal for inline joins.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aqua-Safe Waterproof Female Housing, In-Line Waterproof Connector Housing, 3 Pole Cable Connector
Technical Specifications
- Connector Type: In-line waterproof female housing
- Connector Details: 3 pole plug
- Cable Range: 12-16 mm
- Rated Current: 16 A
- Rated Voltage: 250 V
- Ingress Protection: IP68, up to 2 bar for 30 minutes
- Connector Material: Polycarbonate
- Outer Housing Material: Glass-filled nylon
- Seal Material: Nitrile rubber
- Colour: Black
- Operating Temperature: -25°C to +80°C for static applications
- Flammability Rating: UL94 V-2
- Halogen Free: Yes
- Termination: Screw termination
- Pack Quantity: 1
- Dimensions (H x L x W): 40mm x 85mm x 40mm
- Weight: 0.1 kg
Key Features
- Provides an in-line electrical connection for 12-16 mm diameter cables
- Three-pole plug configuration
- IP68 protection for temporary immersion up to 2 bar for 30 minutes
- Glass-filled nylon housing with nitrile rubber sealing element
- Halogen-free construction
- Touch-safe design when correctly assembled
- Compact housing suitable for temporary or service connections
- Not suitable for permanent submersion
Professional Installation Requirements
- Electrical termination should be completed by a suitably qualified electrician in accordance with the applicable installation requirements, including AS/NZS 3000 where relevant. Isolate the circuit before installation and ensure cable sealing and screw terminations are correctly assembled.
Applications
- Inline joining of electrical cables
- Temporary power connections
- Outdoor electrical equipment and enclosures
- Industrial machinery and control equipment
- Cable connections in damp or wet environments where IP68 protection is required
Environmental Benefits
- Halogen-free construction reduces the use of halogenated materials
- RoHS-compliant construction supports restriction of hazardous substances
- Durable glass-filled nylon and polycarbonate construction can extend service life and reduce replacement waste
- Polycarbonate and nylon components may be recyclable subject to local recycling facilities
Warranty Information
ABB warranty coverage applies to defects in materials and workmanship, with the applicable period and remedy subject to the sale terms for the Australian supply channel. Standard ABB terms commonly provide coverage for up to 12 months after installation or 18 months after shipment, whichever occurs first.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
