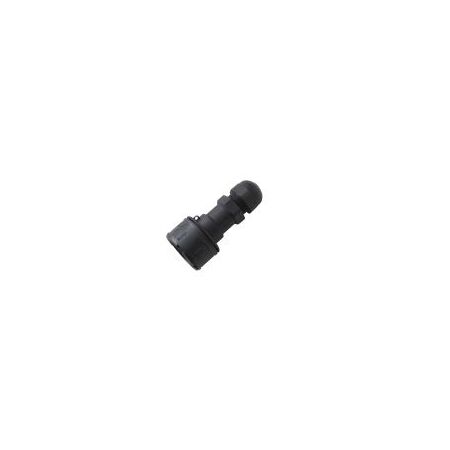

Aquasafe Inline Female Housing 3 Pole 5-9mm Black Adaptaflex
Aquasafe inline female housing features 3 pole plug, 5-9mm cable range, glass filled nylon body, nitrile seal and -25 to +80C rating. Ideal for inline joins.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aquasafe In-Line Waterproof Female Housing, 3 Pole Inline Cable Connector, 3 Pole Plug Housing
Technical Specifications
- Product Type: In-line waterproof female housing
- Connector Type: 3 pole plug
- Cable Range: 5–9 mm
- Current Rating: 16 A
- Ingress Protection: IP68, up to 2 bar for 30 minutes
- Materials: Polycarbonate connector, glass-filled nylon outer housing and nitrile rubber seal
- Temperature Range: -25°C to +80°C for static applications
- Flammability Rating: UL94 V-2
- Approvals: CE marked and IEC 61984
- Halogen Free: Yes
- Colour: Black
- Pack Quantity: 1
- Dimensions (H x L x W): 25mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides a sealed inline connection for compatible three-pole cable assemblies
- Suitable for temporary power connections and inline cable joins
- IP68 protection against dust ingress and temporary water immersion when correctly assembled
- Accepts cables with an outside diameter from 5 to 9 mm
- Glass-filled nylon housing provides mechanical strength and durability
- Nitrile rubber seal supports reliable environmental sealing
- Halogen-free construction
- Not suitable for permanent submersion
- Designed for static applications within the specified temperature range
Professional Installation Requirements
- Electrical installation and termination should be performed by a suitably qualified electrician in accordance with AS/NZS 3000 and the connector manufacturer's instructions. Isolate the electrical supply before installation and verify that the completed assembly is correctly sealed and tested.
Applications
- Inline joining of electrical power cables
- Temporary power connection systems
- Industrial and commercial electrical equipment
- Outdoor and damp-location cable connections
- Light and heavy industrial cable protection and connection systems
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations, for selection, installation and verification of electrical equipment
- AS/NZS 3123:2005 Amd 1:2020, relevant to general industrial plugs, socket-outlets and couplers where applicable
Environmental Benefits
- Halogen-free construction reduces the use of halogenated materials in the product
- Durable glass-filled nylon and polycarbonate construction can extend service life and reduce replacement waste
- Reusable inline connection housing can support cable repair or replacement without replacing the complete installation
Warranty Information
Typically covered by a 12-month manufacturer warranty against defects in materials and workmanship, subject to applicable ABB ADAPTAFLEX terms, correct installation and Australian Consumer Law.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
