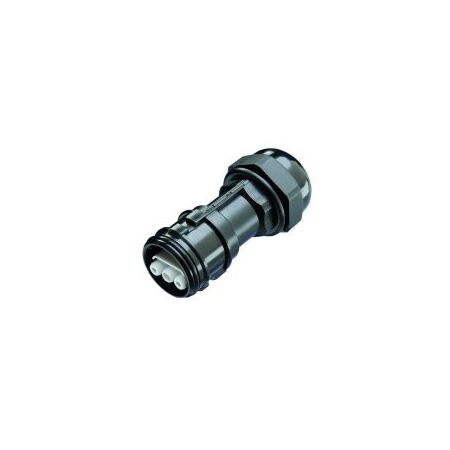

Aquasafe Inline Male Housing 3 Pole Socket Adaptaflex
Aquasafe inline male housing features 3 pole socket, glass filled nylon body, nitrile seal and -25 to +80C rating. Ideal for waterproof inline connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aquasafe waterproof male housing, inline waterproof cable connector housing, 3 pole socket housing
Technical Specifications
- Connector Type: Inline waterproof male housing with 3 pole socket
- Cable Range: 5–9 mm
- Electrical Rating: 250 V AC/DC, 16 A maximum
- Wire Capacity: Up to 4 mm²
- Ingress Protection: IP68 to 2 bar for up to 30 minutes
- Materials: Polycarbonate connector, glass-filled nylon outer housing and nitrile rubber seal
- Termination: Screw terminals
- Colour: Black
- Temperature Range: -25°C to +80°C for static applications
- Flammability: UL94 V-2
- Halogen Free: Yes
- Product Standard: IEC 61984
- Protection Limitation: Temporary immersion rated; not submersible
- Pack Quantity: 1
- Dimensions (H x L x W): 35.5mm x 85mm x 35.5mm
- Weight: 0.1 kg
Key Features
- Three-pole socket configuration in a compact inline male housing
- IP68 protection for temporary immersion to 2 bar for 30 minutes
- Suitable for cable diameters from 5 mm to 9 mm
- Glass-filled nylon housing provides a durable, lightweight enclosure
- Nitrile rubber seal supports water-resistant cable entry and housing protection
- Halogen-free construction
- Keyed housing helps prevent incorrect mating
- Touch-safe connector design when correctly assembled
- Designed for temporary power connections in wet or exposed environments
Professional Installation Requirements
- Installation and termination should be performed by a suitably qualified electrician with the supply isolated. Select compatible cable and mating components, tighten the cable gland correctly, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Temporary outdoor power connections
- Wet-area electrical equipment
- Marine and boat-building equipment
- Temporary street and site lighting
- Portable generators and power distribution equipment
- Water pumps and garden equipment
- Commercial and industrial electrical connections
Standards & Compliance
- IEC 61984 for connector safety requirements and testing
- AS/NZS 3000:2018 for selection and installation within Australian electrical installations
Environmental Benefits
- Halogen-free construction helps reduce halogen emissions in fire conditions
- RoHS-compliant materials reduce the use of restricted hazardous substances
- Durable glass-filled nylon housing and nitrile seal support extended service life and reduced replacement waste
- Compact construction reduces material use while maintaining ingress protection
Warranty Information
ABB Australia standard warranty provides 12 months from delivery against defects in design, materials and workmanship, subject to correct handling, installation, use and storage. Australian Consumer Law rights apply where applicable.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
