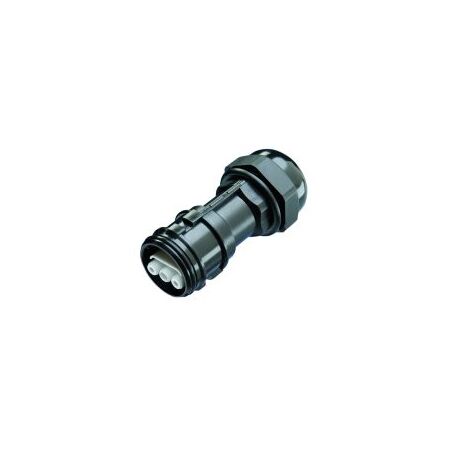

Aquasafe Inline Male Housing 3 Pole Socket Adaptaflex
Aquasafe inline male housing features 3 pole socket, glass filled nylon body, nitrile seal and -25 to +80C rating. Ideal for waterproof inline joins.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aquasafe In-Line Waterproof Male Housing, 3 Pole Socket Connector Housing, Waterproof Inline Electrical Connector
Technical Specifications
- Connector Type: 3 pole socket
- Product Type: In-line waterproof male housing
- Rated Current: 16 A
- Cable Range: 5–9 mm, 8–13 mm or 12–16 mm variant dependent
- Ingress Protection: IP68, up to 2 bar for 30 minutes
- Material: Glass-filled nylon outer housing with polycarbonate connector
- Seal Material: Nitrile rubber
- Temperature Range: -25°C to +80°C in static applications
- Flammability: UL94 V-2
- Halogen Free: Yes
- Approval: CE marked and compliant with IEC 61984
- Colour: Black
- Limitation: Not submersible
- Pack Quantity: 1
- Dimensions (H x L x W): 35.5mm x 80mm x 35.5mm
- Weight: 0.1 kg
Key Features
- Three-pole socket configuration for inline electrical connections
- Designed for temporary power connections and waterproof inline joins
- IP68 protection for short-duration immersion up to 2 bar for 30 minutes
- Glass-filled nylon housing provides a durable, impact-resistant enclosure
- Nitrile rubber seal helps protect the connection against water and dust ingress
- Halogen-free construction
- Compact male housing design
- Suitable for static applications from -25°C to +80°C
Professional Installation Requirements
- Electrical termination and installation should be performed by a suitably qualified electrician in accordance with applicable wiring rules, equipment instructions and local electrical regulations. Do not connect or disconnect while energised unless the complete assembly is specifically rated for that operation.
Applications
- Waterproof inline joins in electrical cabling
- Temporary power connections
- Outdoor electrical equipment and lighting
- Industrial, construction and event power installations
- Control and equipment wiring requiring a sealed three-pole connection
Environmental Benefits
- Halogen-free construction helps reduce the release of halogenated substances if exposed to fire
- Durable glass-filled nylon and polycarbonate construction can extend service life and reduce replacement waste
- Reusable connector housing supports maintainable electrical installations rather than disposable sealed joints
Warranty Information
ABB standard sale conditions provide a 12-month warranty against defects in design, materials and workmanship, subject to correct handling, installation, use and notification requirements. Australian Consumer Law rights apply where relevant.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
