Trade Discount 33%

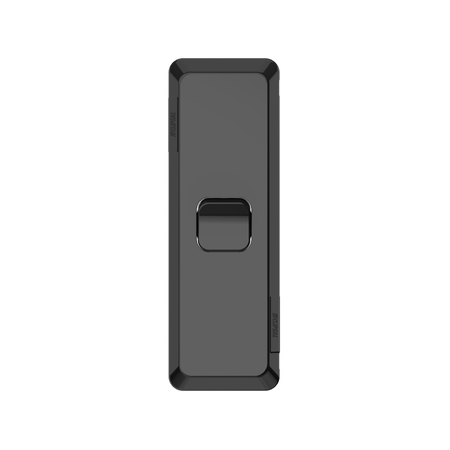

Architrave Switch Vertical Mount | 1 Gang 230/240V 20A | Black by Clipsal
Architrave switch with vertical mount and 1 gang, 230/240V, 20A—ideal for residential and commercial spaces. Built for slim areas, with one or two-way switching capability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pro Series, Architrave Switch, Vertical Mount, 1 Gang, 230/240V, 20A, 16AX - Black
Brand: Clipsal
SKU: P3041A-BK
Alternatively Known As: Architrave Switch, 1 Gang Switch, Vertical Mount Switch
Technical Specifications
- Rated current: 20 A / 16 AX
- Rated operational voltage: 230/240 V
- Control type: rocker
- Device mounting: wall
- Installation direction: vertical
- Clamping connection capacity: 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 4 mm² for stranded cable(s)
- Material: PC (polycarbonate), PP (polypropylene), ABS (acrylonitrile butadiene-styrene), POM (polyoxymethylene)
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95 %
- Dimensions (H x L x W): 113mm x 40mm x 38mm
- Weight: 0.046 kg
Key Features
- Fits perfectly in slim areas where switching is needed.
- Can be configured for one or two way switching.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, corridors
- Commercial: Offices, large rooms
Standards & Compliance
- Complies with RCM certification.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Pro Series Architrave Switch is available now for immediate purchase. Ideal for residential and commercial spaces requiring efficient lighting control.
