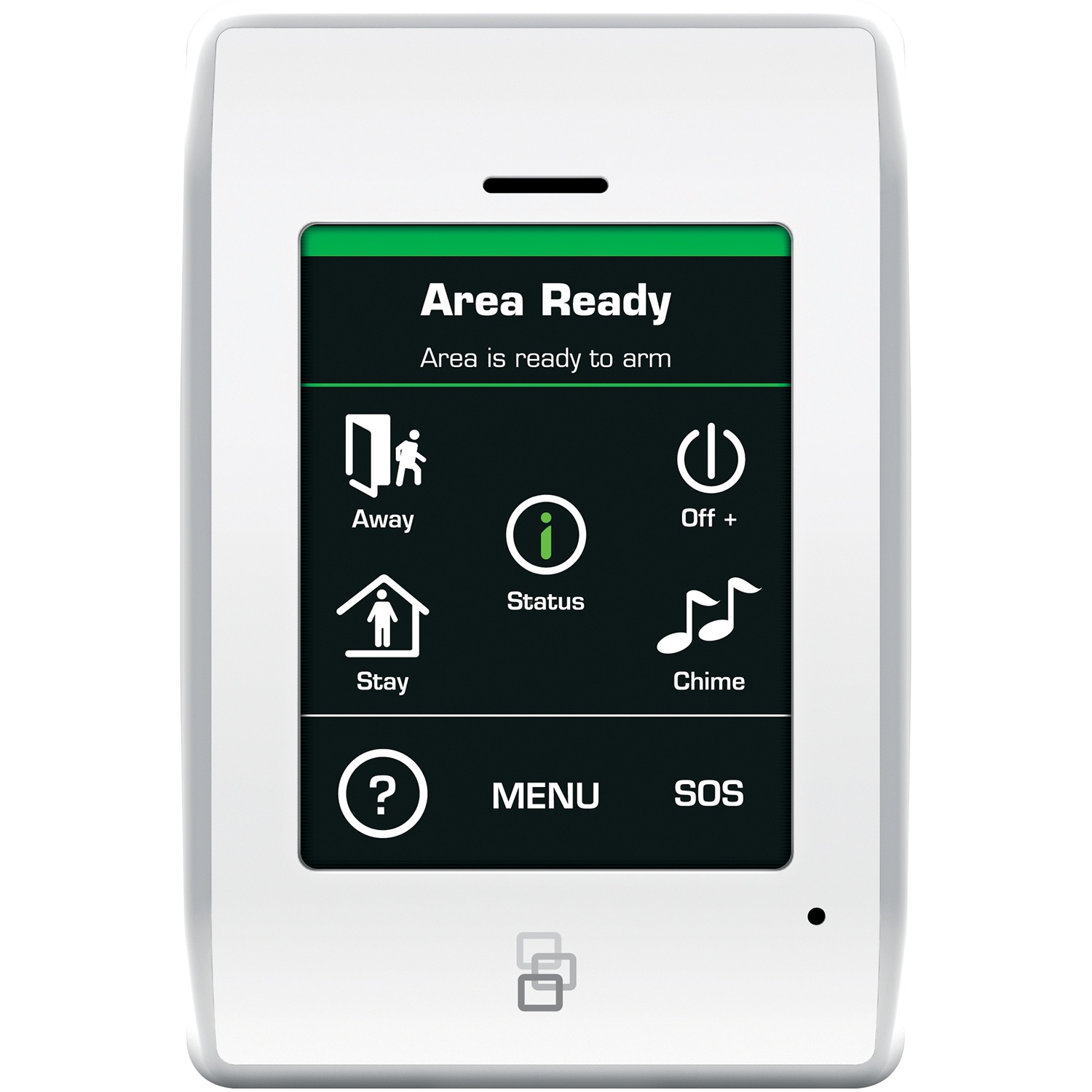

Aritech Reliance XR Touch Screen | 3.5" Colour Display | Multi-Partition Operation | RCM Approved | by Reliance XR
The Aritech Reliance XR Touch Screen is a 3.5-inch colour display designed for seamless integration with Aritech Reliance XR Series security systems. Ideal for both residential and commercial applications, it features intuitive controls, multi-partition operation, and customizable user settings. With firmware upgradeability and compliance with EN 50131-3 Security Grade 2, this touch panel enhances security management while ensuring user-friendly operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aritech Reliance XR Touch Screen | 3.5" Colour Display | Multi-Partition Operation | RCM Approved | by Reliance XR
Brand: Reliance XR
SKU: 206140
Alternatively Known As: Aritech Reliance XR Touch Screen, NXG-1820 Security Interface, Reliance XR Touch Panel
Technical Specifications
- Screen Size: 3.5 inches colour touch screen
- Compatibility: Aritech Reliance XR Series
- Arming Modes: Arm Away, Arm Stay, Arm Stay Night
- Operation: Single and multi-partition
- User Interface: Custom text naming, multi-language support
- Firmware: Upgradeable via USBUP and DLX900
- Security Compliance: EN 50131-3 Security Grade 2, NCERT T031
- Approvals: RCM approved
- Dimensions (H x L x W): 90mm x 30mm x 120mm
- Weight: 0.3 kg
Key Features
- 3.5” colour touch screen with intuitive graphical interface
- Compatible with Aritech Reliance XR Series security systems
- Quick Arm Away, Quick Arm Stay, and Status keys for easy control
- Custom text naming for users, partitions, zones, and outputs
- Supports three arming modes: Arm Away, Arm Stay, Arm Stay Night
- Built-in message board for communication
- Single and multi-partition operation
- Multi-language support
- Firmware upgradeable via USBUP and DLX900
- Streamlined, modern design with custom logo display
- Cleaning mode for screen maintenance
- Navigation menu for both user and installer
- RCM approved
- Complies with EN 50131-3 Security Grade 2 and NCERT T031
Professional Installation Requirements
- Professional installation by a licensed security system technician is recommended to ensure proper integration and compliance with security standards.
Applications
- Residential security systems
- Commercial security installations
- Multi-partition security management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Firmware upgradeable to extend product lifespan and reduce electronic waste
- Energy-efficient touchscreen interface reduces power consumption
Warranty Information
2 years warranty included.
Available Now
The RELIANCE S110617 XR TOUCH 2YR NXX-1820 is available for immediate purchase, ideal for enhancing security system control in residential and commercial environments.
